STI Model

  1. Lift up the vehicle, and then remove the front wheels.
  2. Remove the pad - disc brake front.

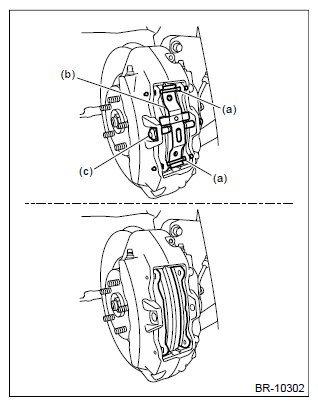

    1. Remove the pin - disc brake (a), cross spring (b) and pad clip bolt (c).
    2. Remove the pad - disc brake front.
G12448116Courtesy of SUBARU OF AMERICA, INC.
