STI Model

NOTE: Before installation, remove mud and foreign matter from the disc brake assembly.

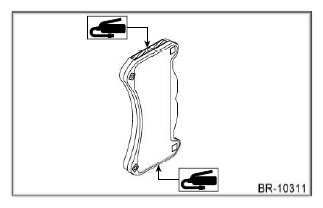

Apply a thin coat of grease to the side surface of the pad - disc brake front.
Preparation items:

Grease: An item contained in the pad kit, Molykote M7439 or equivalent

Courtesy of SUBARU OF AMERICA, INC.
Install the pad - disc brake front.
NOTE: Install the parts with the pad wear indicator facing downward.

Courtesy of SUBARU OF AMERICA, INC.
Install the pad clip bolt.
Tightening torque:

30 N.m (3.1 kgf-m, 22.1 ft-lb)
Install the cross spring.
Install the pin - disc brake.
Install the front wheels.
Tightening torque:

120 N.m (12.2 kgf-m, 88.5 ft-lb)
