Front Brake Pad: Inspection

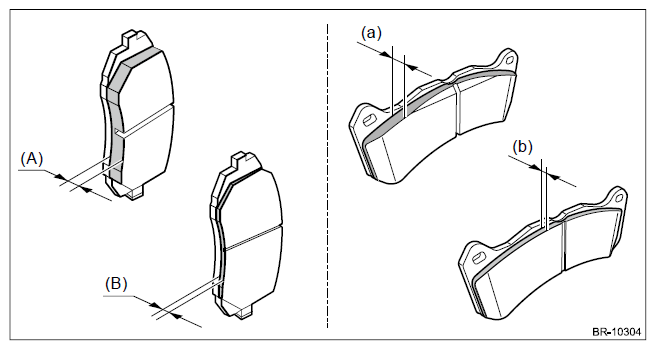

Check the thickness (A) of the pad - disc brake front.

NOTE:

Always replace the pads of both wheels and both sides as a set.
Replace pad clips if they are twisted or worn.
Replace the pad if there is oil or grease on it.
Wear indicators are installed on the pad - disc brake front inner (other than STI model) or on the pad - disc brake front outer (STI model), and a squeaking sound is heard if the pad is worn to the limit.

Courtesy of SUBARU OF AMERICA, INC.

Except for STI model

Standard (A)		Wear limit (B)
Pad thickness	11 mm (0.43 in)	1.5 mm (0.059 in)

STI model

Standard (a)		Wear limit (b)
Pad thickness	9.5 mm (0.37 in)	2.8 mm (0.11 in)

If the wear limit is exceeded in the inspection, replace the pad - disc brake front.
