Sunroof Assembly: Removal

CAUTION:

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM".
Refer to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
When removing the clip, use great care not to damage the trim panel - roof assembly.

Disconnect the ground cable from battery.
Refer to NOTE>NOTE>BATTERY .
NOTE:
- Completely close the lid assembly - sunroof, then disconnect the ground cable.
- For model with battery sensor, disconnect the ground terminal from battery sensor.

Remove the lid assembly - sunroof.

CAUTION: Be careful not to damage the lid assembly sunroof.

Remove the lid assembly - sunroof.

Preparation tool:

TORX^® T25

Courtesy of SUBARU OF AMERICA, INC.

Remove the trim panel - roof assembly.
Refer to EXTERIOR/INTERIOR TRIM>ROOF TRIM>REMOVAL .
Remove the bracket - assist rail.

Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector of the motor assembly - sunroof.
Remove the drain tube - sunroof.
NOTE: When removing the drain tube - sunroof completely, perform the step 8.

Courtesy of SUBARU OF AMERICA, INC.

Remove the rail assembly - sunroof.

Remove the curtain airbag module.
Refer to AIRBAG SYSTEM>CURTAIN AIRBAG MODULE>REMOVAL .

Remove the bolts and then remove the sunroof bracket.

Courtesy of SUBARU OF AMERICA, INC.

Remove the bolts, then remove the rail assembly.

Courtesy of SUBARU OF AMERICA, INC.

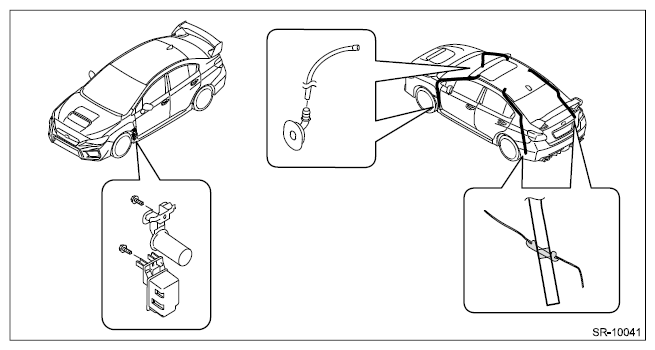

Remove the drain tube - sunroof.

NOTE: For easy replacement work, attach a string when pulling the drain tube - sunroof.

Remove the cover side sill - front INN and cover side sill - front.
Refer to EXTERIOR/INTERIOR TRIM>LOWER INNER TRIM>REMOVAL .
Disconnect each connector, bolt and clip, then remove the connector holder.
Remove the front side of drain tube - sunroof.
Remove the mat - rear floor and the spacer - rear floor.

Remove the rear side of drain tube - sunroof.

Courtesy of SUBARU OF AMERICA, INC.
