Front Seat

Manual seat LH

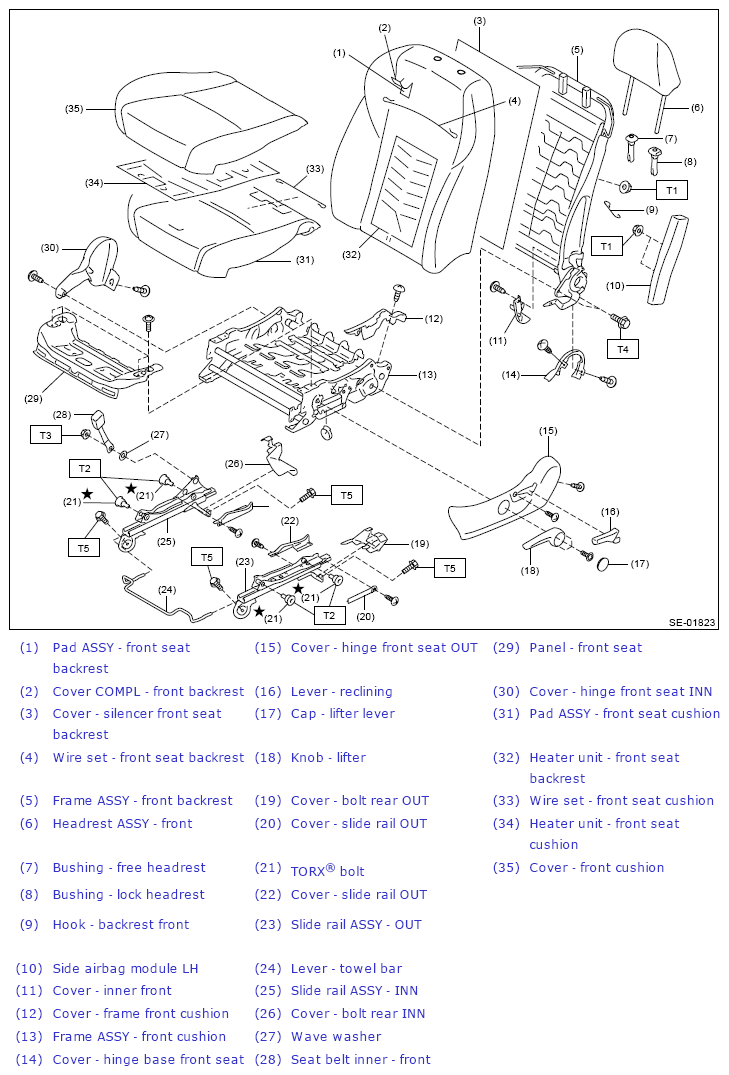

Fig 1: Exploded View Of Front Seat (With Torque Specification) - Manual Seat LH
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 15 (1.5, 11.1)

T3: 38 (3.9, 28)

T4: 52 (5.3, 38.4)

T5: 53 (5.4, 39.1)
Manual seat RH

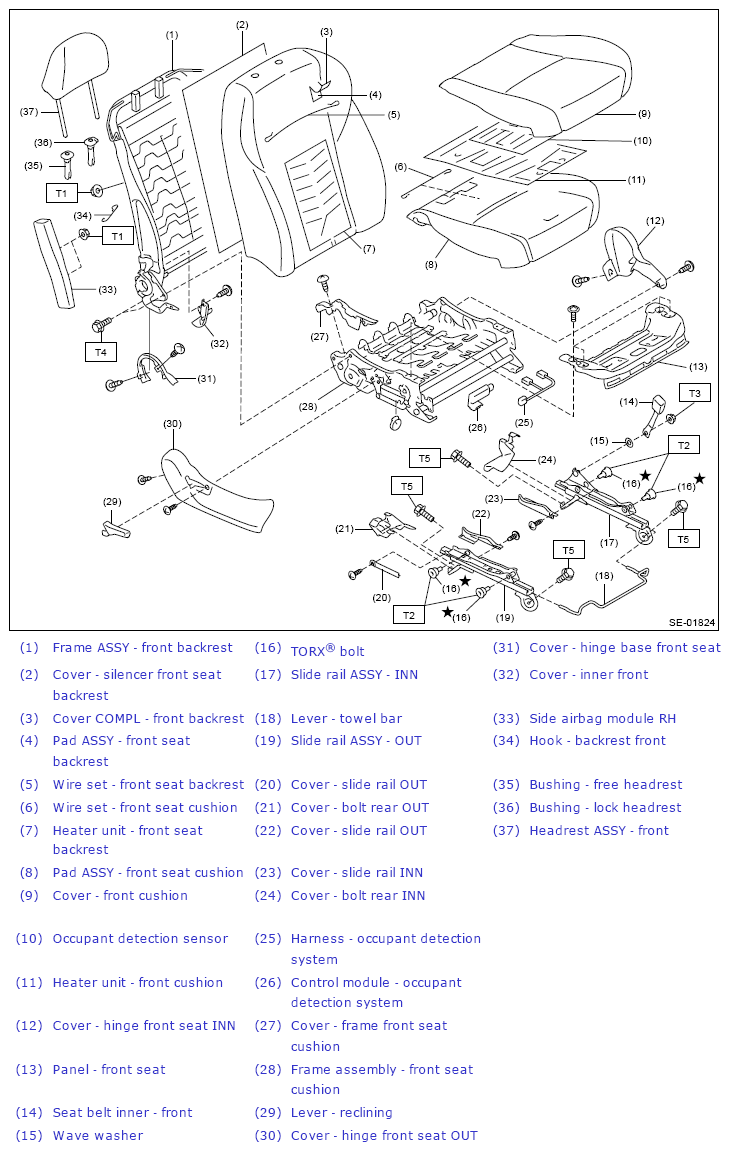

Fig 2: Exploded View Of Front Seat (With Torque Specification) - Manual Seat RH
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 15 (1.5, 11.1)

T3: 38 (3.9, 28)

T4: 52 (5.3, 38.4)

T5: 53 (5.4, 39.1)

NOTE: Passenger's seat cannot be disassembled because it is seat cushion pad & frame assembly.
Power seat

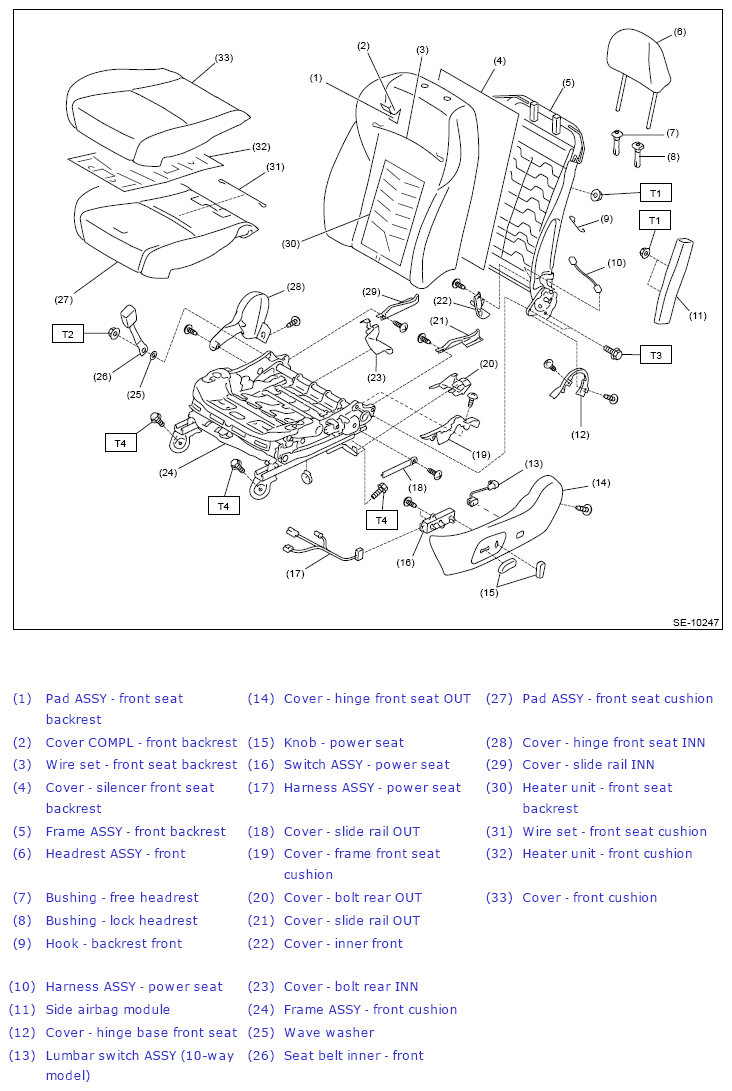

Fig 3: Exploded View Of Front Seat (With Torque Specification) - Power Seat
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.6, 4.4)

T2: 38 (3.9, 28)

T3: 52 (5.3, 38.4)

T4: 53 (5.4, 39.1)
RECARO^® seat LH

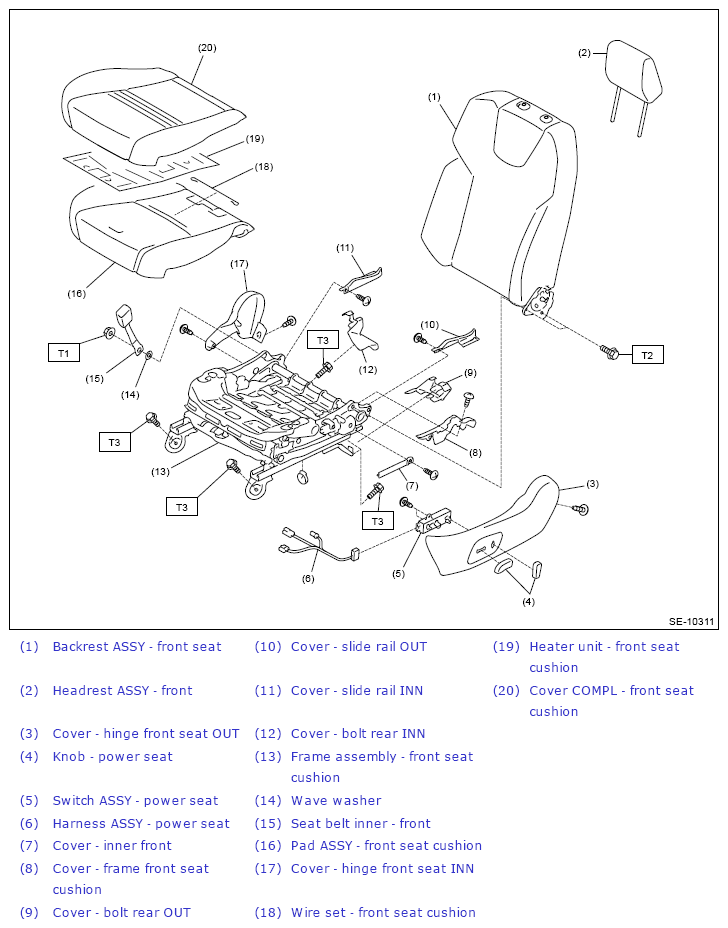

Fig 4: Exploded View Of Front Seat (With Torque Specification) - Recaro® Seat LH
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 38 (3.9, 28)

T2: 52 (5.3, 38.4)

T3: 53 (5.4, 39.1)

NOTE: Since the backrest of the RECARO^® seat is a backrest assembly, it cannot be disassembled.
RECARO^® seat RH

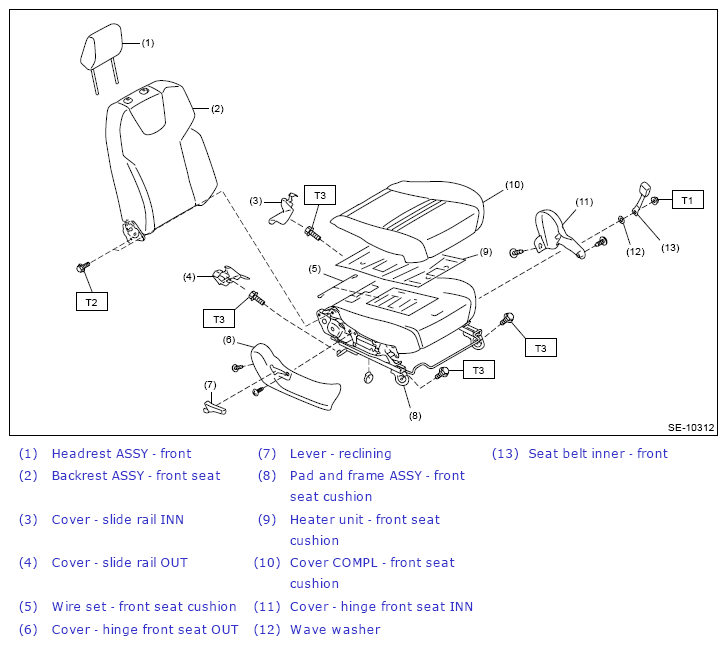

Fig 5: Exploded View Of Front Seat (With Torque Specification) - Recaro® Seat RH
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 38 (3.9, 28)

T2: 52 (5.3, 38.4)

T3: 53 (5.4, 39.1)

NOTE: Since the backrest of the RECARO^® seat is a backrest assembly, it cannot be disassembled.
