Home >> Subaru >> 2019 >> WRX Base >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Anti-Theft System - Security And Locks >> Trunk Opener Switch >> Removal

Trunk Opener Switch: Removal

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work.

    Refer to NOTE>NOTE>BATTERY .

    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the cover assembly - instrument panel LWR driver OUT.

    Refer to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .

  3. Remove the trunk opener switch.

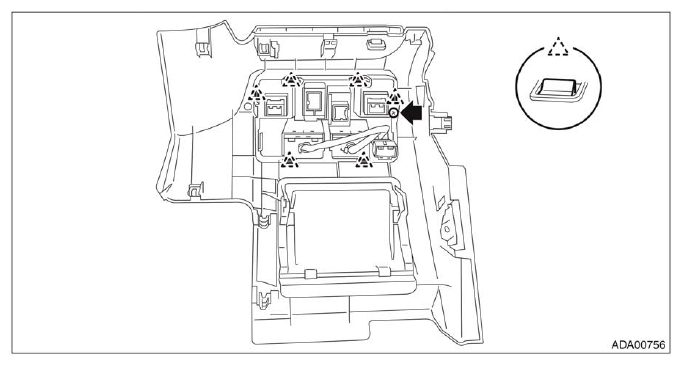

    1. Remove the screw, release the claws, and then remove the panel - switch.
      G10298923Courtesy of SUBARU OF AMERICA, INC.

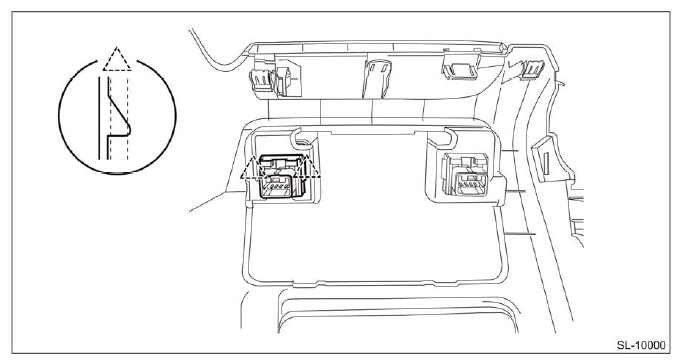

    2. Release the claws and remove the trunk opener button.
      G10298924Courtesy of SUBARU OF AMERICA, INC.
