Keyless Buzzer: Removal

Disconnect the ground cable from battery,
Refer to NOTE>NOTE>BATTERY .

NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Remove the air cleaner case.
- STI model:
  Refer to INTAKE (INDUCTION) (STI)>AIR CLEANER CASE>REMOVAL
- Except for STI model:
  Refer to INTAKE (INDUCTION) (EXCEPT FOR STI)>AIR CLEANER CASE>REMOVAL
Lift up the vehicle.
Remove the screw and clips, and turn over the mud guard - front LH.

Courtesy of SUBARU OF AMERICA, INC.

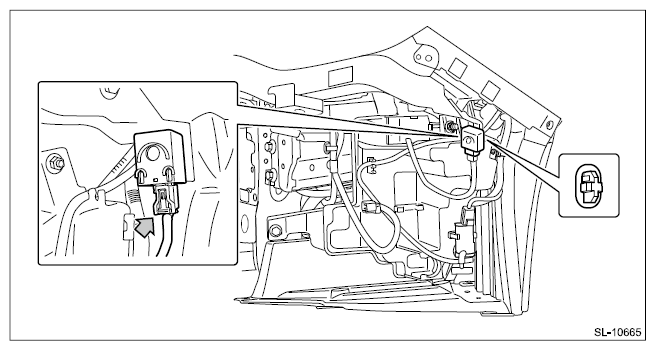

Remove the keyless buzzer.

Remove the clip and detach the keyless buzzer.

Courtesy of SUBARU OF AMERICA, INC.
