Front Door

  1. Raise the glass assembly - front door to the top position.
  2. Remove the cover - handle front outer.

    Preparation tool:

    TORX® T30

    1. Remove the plug at the rear end of the panel assembly - front door.
    2. Loosen the TORX® bolt and remove the cover - handle front outer.

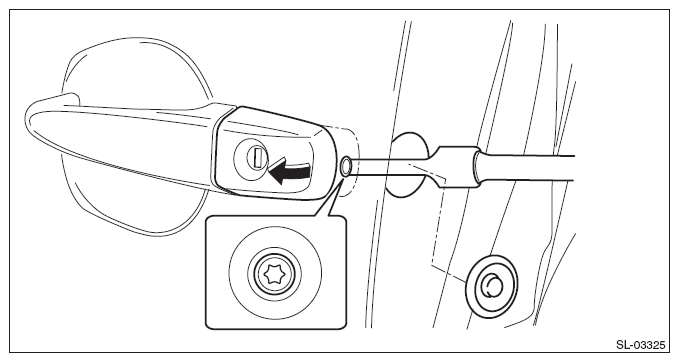

      G10309564Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the key cylinder (B) from the cover - handle front outer (A), and replace the key cylinder.
    G08319273Courtesy of SUBARU OF AMERICA, INC.
  4. Install each part in the reverse order of removal.
    CAUTION: When installing the cover - handle front outer on driver's side, make sure that the key cylinder shaft is correctly inserted into the latch & actuator assembly - front.

    Tightening torque:

    Refer to "COMPONENT" of "General Description". Refer to SECURITY AND LOCKS>GENERAL DESCRIPTION>COMPONENT>DOOR LOCK ASSEMBLY .
