Wiper Blade: Assembly

  1. Insert the rubber assembly - windshield wiper onto the blade - windshield wiper so that the stopper is in the position shown in the figure.
    G06653526Courtesy of SUBARU OF AMERICA, INC.

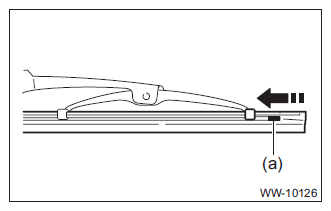

  2. Make sure the rubber assembly - windshield wiper is securely fastened to the pull stopper (a).
G11582559Courtesy of SUBARU OF AMERICA, INC.
