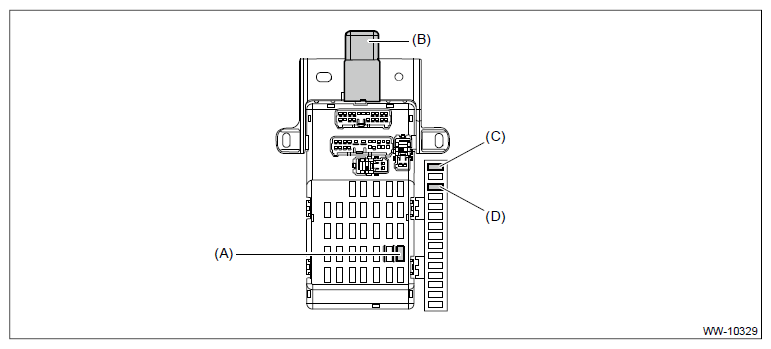

Relay And Fuse: Location
| Relay & fuse box | Fuse 7.5 A (wiper) | (A) |
| Relay holder | Wiper relay | (B) |
| Fuse holder | Fuse 30 A (front wiper) | (C) |
| Fuse 15 A (front washer) | (D) |
NOTE:
For other related fuses, refer to the wiring diagram. Refer to WIRING SYSTEM>POWER SUPPLY CIRCUIT
.
