Models Without EyeSight

NOTE: Since the arm assembly - windshield wiper LH and RH can interfere with each other, remove the driver's side first.
  1. Remove the cover - windshield wiper arm.

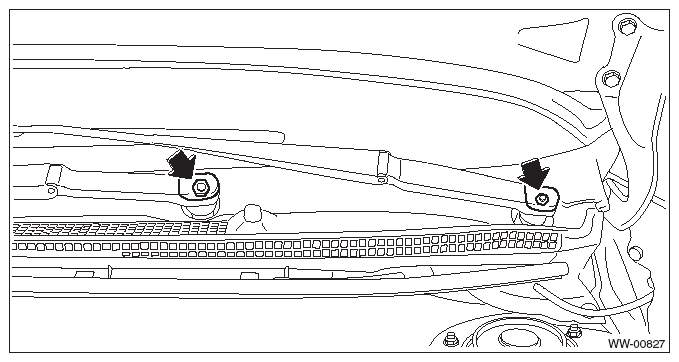

  2. Remove the nuts, and remove the arm assembly - windshield wiper.
G08316546Courtesy of SUBARU OF AMERICA, INC.
