Models With EyeSight

NOTE: Since the arm assembly - windshield wiper LH and RH can interfere with each other, remove the driver's side first.
  1. Remove the cover - windshield wiper arm.
  2. Remove the arm assembly - windshield wiper.
    1. Remove the nuts, and remove the arm assembly - windshield wiper.

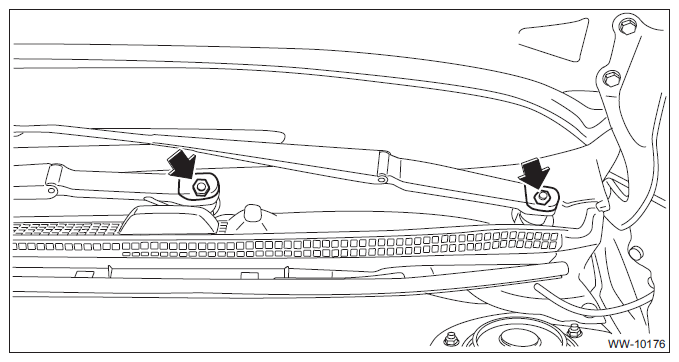

      G11582569Courtesy of SUBARU OF AMERICA, INC.
    2. Add alignment marks (a) on two places, and remove the hose from the arm assembly - windshield wiper assistor.

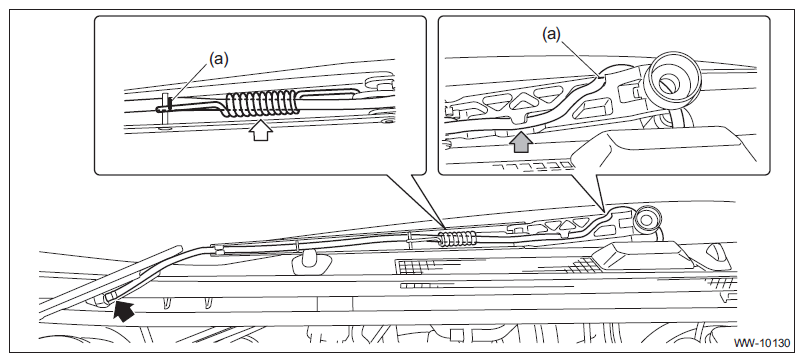

    G11582570Courtesy of SUBARU OF AMERICA, INC.
  3. When removing the hose from the joint - washer hose, refer to the removal of "Nozzle - wiper arm washer & hose". Refer to WIPER AND WASHER SYSTEMS>FRONT WASHER NOZZLE AND HOSE>REMOVAL>NOZZLE - WIPER ARM WASHER & HOSE (MODEL WITH EYESIGHT) .
    CAUTION: Do not remove the nozzle - wiper arm washer from the arm assembly - windshield wiper assistor.
    If nozzle replacement is required, replace the arm assembly - windshield wiper assistor as a unit.
