Combination Switch (Wiper): Removal

  1. Disconnect the ground cable from battery. Refer to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the cover assembly - column.
    1. Release the clips, and remove the cover assembly - steering UPR.
      G10269892Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the screws by turning the steering wheel to right and left.

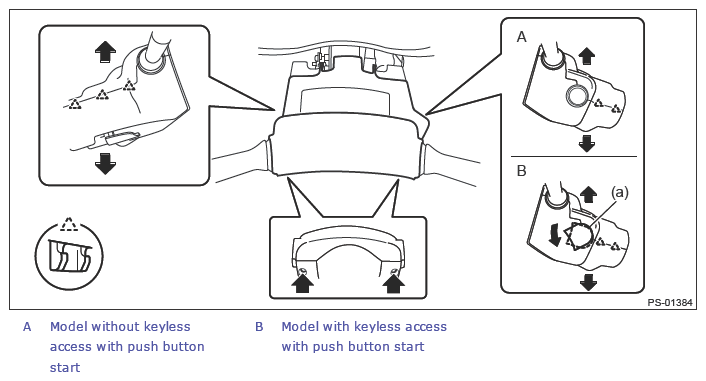

    3. Remove the cap - key cylinder (a). (Model with keyless access with push button start)
    4. Release the claw, and remove the cover assembly - column UPR and the cover assembly - column LWR.
    G13262652Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the switch assembly - combination wiper select.
    1. Disconnect the connector.
    2. Release the claws, and pull out the switch assembly - combination wiper select.
      CAUTION: Do not press the claws with excessive force. They may be damaged.
G10270767Courtesy of SUBARU OF AMERICA, INC.
