Front Wiper

Check with Subaru Select Monitor
NOTE: For detailed operation procedures, refer to "Application help".
1. Check the input signal when the switch assembly - combination wiper select is turned to LO or HI, using the «Data monitor» display.
2. Does the input signal change corresponding to the switch operation?
  - Yes → Finish the diagnosis.
  - No → Check the harness.
Check the intermittent operation (inspection of the combination switch (wiper) alone)

Courtesy of SUBARU OF AMERICA, INC.
1. Set the voltmeter between terminals No. A2 (+) and No. B2 (-).
2. Connect the battery to connector. (Terminal No. A2 (+), terminal No. B2 & A3 (-))
3. Turn the switch assembly - combination wiper select to INT.
4. Connect the battery (+) to the terminal No. A2 for 5 seconds.

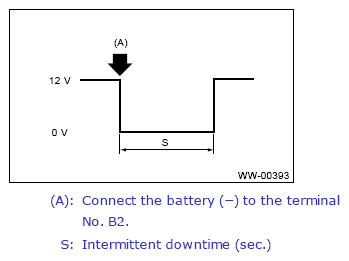

5. Connect the battery (-) to the terminal No. B2, and check the voltage between terminals No. A2 and No. A3 during intermittent operation.
6. Perform step 1 to 5 above when intermittent control switch is in MIN or MAX, and replace the switch if the operation is not as specified.
  Intermittent stationary time

  MIN: Approx. 2 seconds

  MAX: Approx. 16 seconds

G13262656

Courtesy of SUBARU OF AMERICA, INC.
