Reverse Automatic Braking Control Module: Removal

NOTE: Remove the Reverse Automatic Braking Control Module after sliding the front seat LH back and forth as necessary.
  1. Disconnect the ground cable from battery.

    Ref. to NOTE>NOTE>BATTERY .

    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.

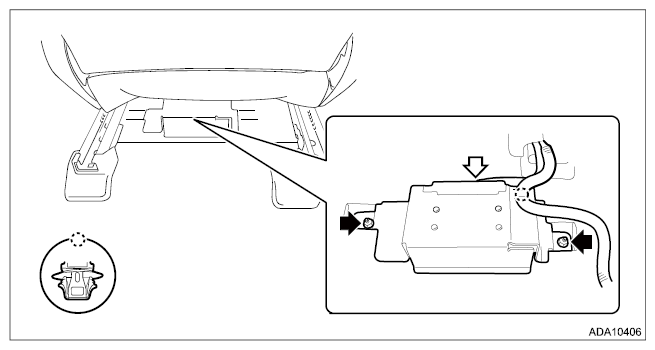

  2. Remove the Reverse Automatic Braking Control Module.
    1. Remove the connector and harness clip.
    2. Remove the nut and remove the Reverse Automatic Braking Control Module.
      G12401888Courtesy of SUBARU OF AMERICA, INC.
