EyeSight Assist Monitor: Removal

  1. Disconnect the ground cable from battery.

    Ref. to NOTE>NOTE>BATTERY .

    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the grille speaker side.

    Ref. to ENTERTAINMENT & MONITORING>FRONT SPEAKER>REMOVAL>TWEETER .

  3. Remove the grille - front defroster.

    Ref. to HVAC SYSTEM (HEATER, VENTILATOR AND A/C)>SUNLOAD SENSOR (AUTO A/C MODEL)>REMOVAL .

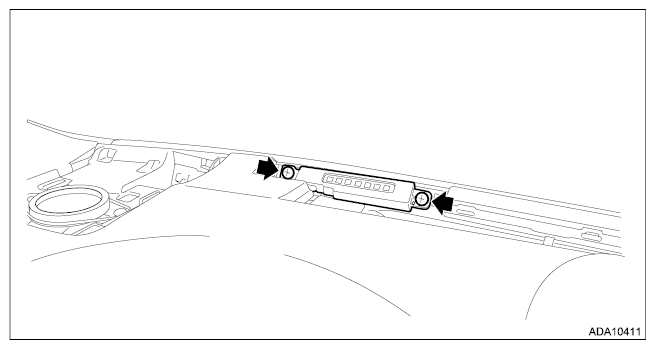

  4. Remove the EyeSight assist monitor.
    1. Remove the screws.
    2. Disconnect the connector and remove the EyeSight assist monitor.
      G12401869Courtesy of SUBARU OF AMERICA, INC.
