DTC P0197: Engine Oil Temperature Sensor "A" Circuit Low: Notes

DTC detecting condition:

Immediately at fault recognition

Trouble symptom:

• Hard to start
• Improper idling
• Poor driving performance
  CAUTION:

  • After servicing or replacing faulty parts, perform Clear Memory Mode Refer to ENGINE (DIAGNOSTICS) (EXCEPT FOR STI)>CLEAR MEMORY MODE>OPERATION , and inspection mode Refer to ENGINE (DIAGNOSTICS) (EXCEPT FOR STI)>INSPECTION MODE>PROCEDURE ..
  • Use the check board when measuring the ECM terminal voltage and resistance.

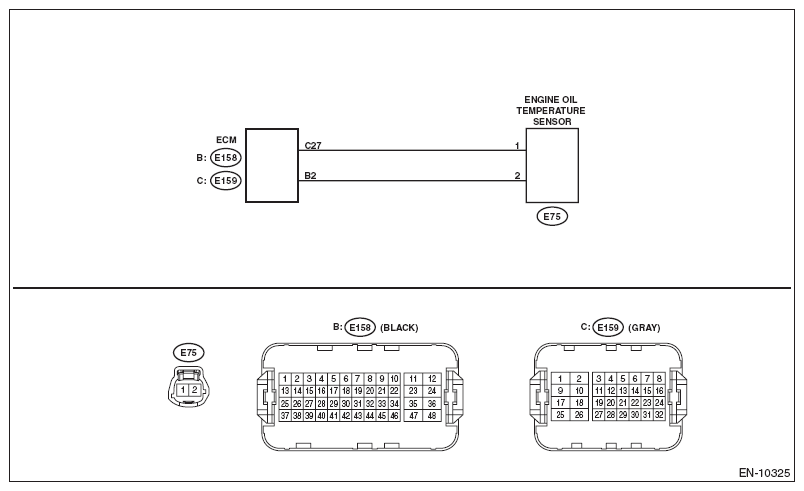

Wiring diagram:

Engine Electrical System Refer to WIRING SYSTEM>ENGINE ELECTRICAL SYSTEM>WIRING DIAGRAM .

Courtesy of SUBARU OF AMERICA, INC.

1. CHECK CURRENT DATA.
   1. Start the engine.
   2. Read the value of «Oil Temperature» using the Subaru Select Monitor or a general scan tool.
      NOTE:

      • Subaru Select Monitor

        For detailed operation procedures, refer to "Current Data Display For Engine". Refer to ENGINE (DIAGNOSTICS) (EXCEPT FOR STI)>SUBARU SELECT MONITOR .

      • General scan tool

        For detailed operation procedures, refer to the general scan tool operation manual.

   Is the value of «Oil Temperature» 150°C (302°F) or more?

   Yes:  Go to  2.

   No:  Even if DTC is detected, the circuit has returned to a normal condition at this time. Reproduce the failure, and then perform the diagnosis again.

   NOTE: In this case, temporary poor contact of connector, temporary open or short circuit of harness may be the cause.
2. CHECK HARNESS BETWEEN ECM AND ENGINE OIL TEMPERATURE SENSOR CONNECTOR.
   1. Turn the ignition switch to OFF.
   2. Disconnect the connector from ECM.
   3. Disconnect the connectors from the engine oil temperature sensor.
   4. Measure the resistance between the ECM connector and engine ground.

      Connector & terminal

      (E158) No. 2 - Engine ground:

   Is the resistance 1 MΩ or more?

   Yes:  Replace the engine oil temperature sensor. Refer to FUEL INJECTION (FUEL SYSTEMS) (EXCEPT FOR STI)>ENGINE OIL TEMPERATURE SENSOR .

   No:  Repair the short circuit to ground in the harness between the ECM connector and engine oil temperature sensor connector.
