Diagnosis Method 3 (MT Model Only)

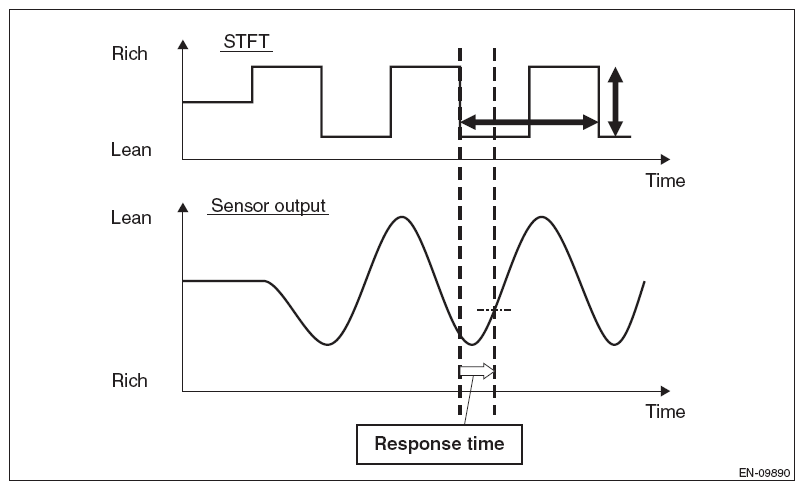

Change STFT (A/F compensation value) by interruption, and measure the reaction time of λ value.

When A/F sensor malfunctions, the reaction time takes longer than at normal condition. In this case, judge as abnormal.

Courtesy of SUBARU OF AMERICA, INC.

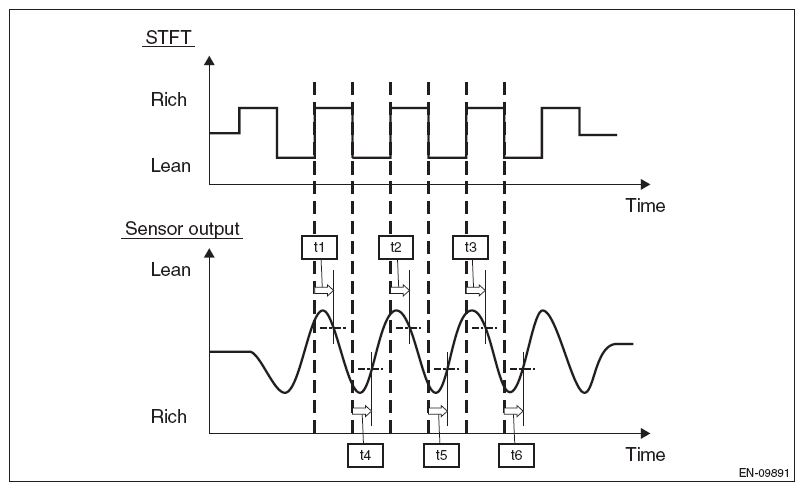

Measure reaction time (t1, t2, t3) and reaction time (t4, t5, t6). Use the average value of the reaction time to obtain the diagnostic value.

Courtesy of SUBARU OF AMERICA, INC.

Judge as NG when the following conditions are established.

Time needed for diagnosis:  4.5 seconds

Malfunction indicator light illumination:  Illuminates when malfunction occurs in 2 continuous driving cycles.
