Diagnostic Method

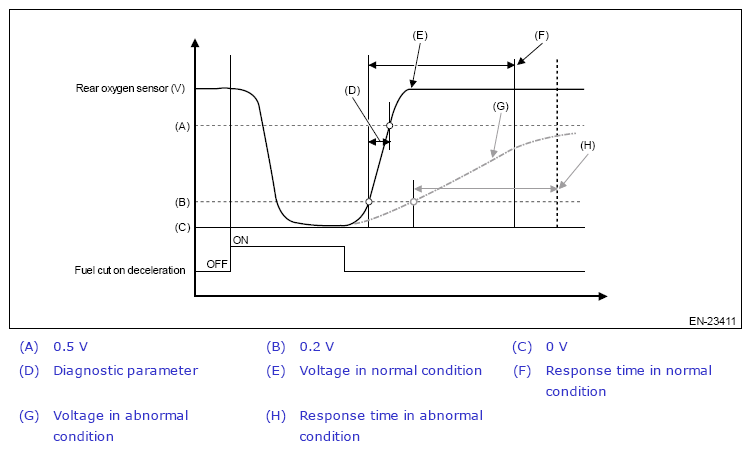

Detect the trouble by calculating the response time of the rear oxygen sensor after fuel cut.

Courtesy of SUBARU OF AMERICA, INC.

Judge as NG when the following conditions are established.

JUDGMENT VALUE SPECIFICATION

Malfunction Criteria	Threshold Value
Output voltage value of rear oxygen sensor	< 0.5 V
Elapsed time	> 3 s

Time needed for diagnosis: Less than 1 second

Malfunction indicator light illumination: Illuminates when malfunction occurs in 2 continuous driving cycles.
