Component Description

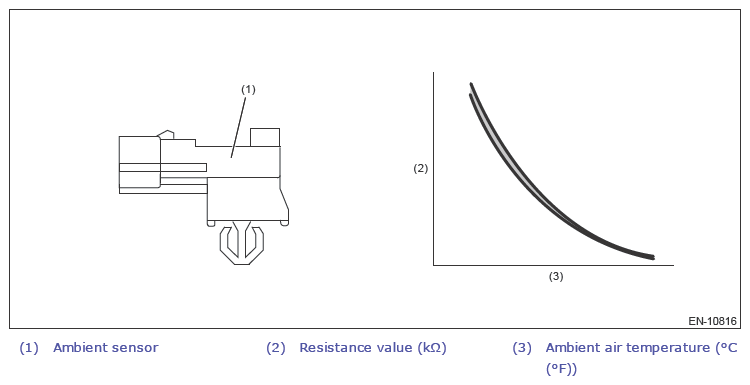

Ambient temperature sensor is connected to combination meter. ECM receives the data of ambient temperature sensor via CAN communication with combination meter.

G13264239Courtesy of SUBARU OF AMERICA, INC.
