Components With Torque Specifications: Generator

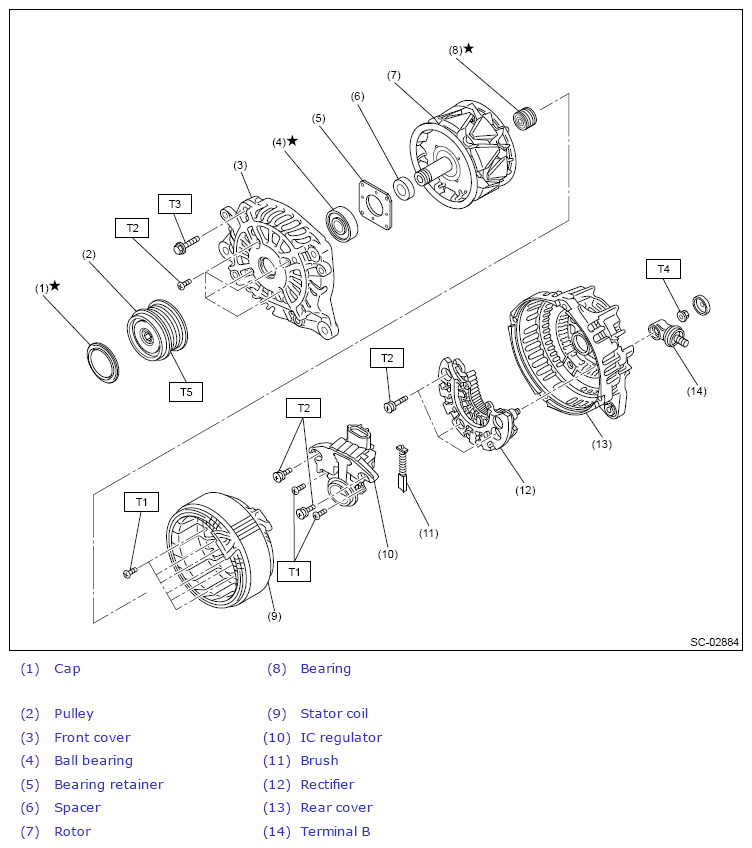

Fig 1: Explode View Of Generator Components (With Torque Specifications)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m ft-lb)

T1: 2 (0.2, 1.5)

T2: 3.9 (0.4, 2.9)

T3: 4.4 (0.4, 3.2)

T4: 8.9 (0.9, 6.6)

T5: 108 (11.0, 79.8)
