Front Wiper

• Models without EyeSight

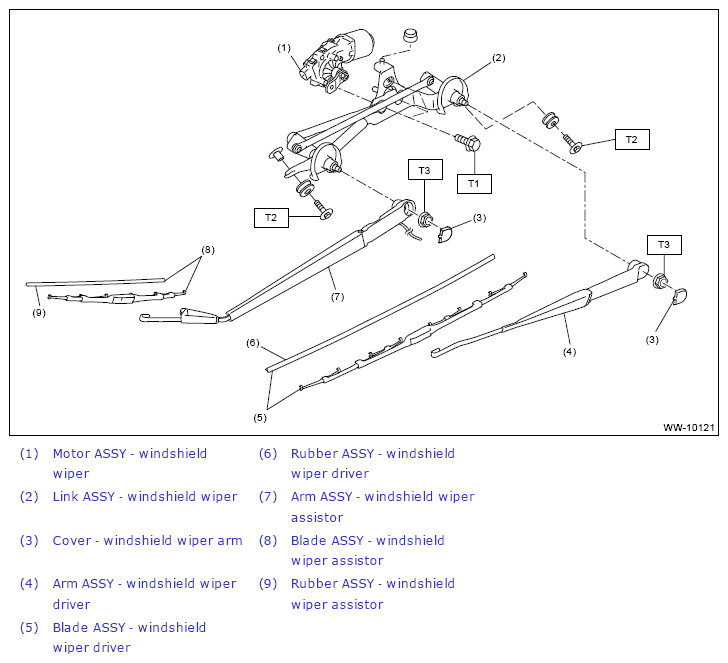

  Fig 1: Front Wiper Components (With Torque Specifications) - Models Without EyeSight

  Courtesy of SUBARU OF AMERICA, INC.

  Tightening torque: N.m (kgf-m, ft-lb)

  T1: 5.5 (0.6, 4.1)

  T2: 6 (0.6, 4.4)

  T3: 26 (2.7, 19.2)

• Models with EyeSight

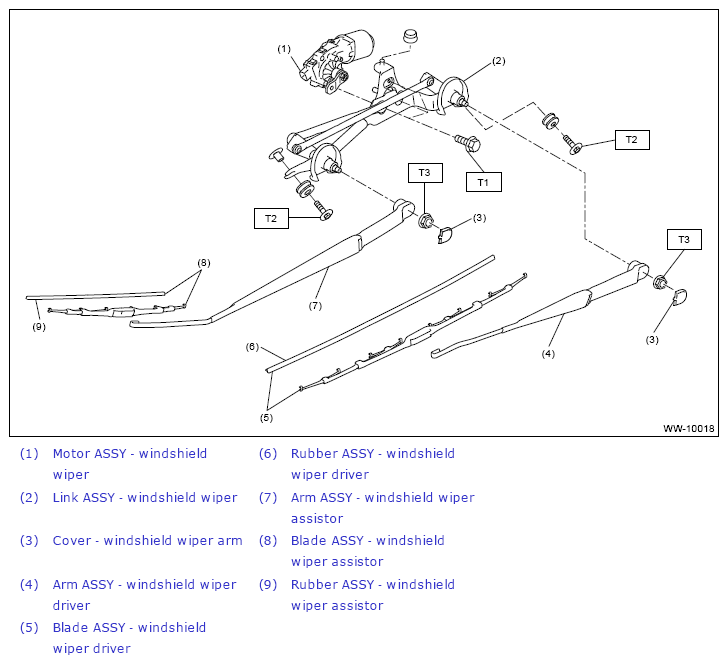

Fig 2: Front Wiper Components (With Torque Specifications) - Models With EyeSight

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5.5 (0.6, 4.1)

T2: 6 (0.6, 4.4)

T3: 26 (2.7, 19.2)
