Front Wiper Motor And Link: Installation

CAUTION:
  • If the cowl panel assembly cannot be installed properly, do not hit or set it forcibly. The claws of the cowl panel or the windshield glass may be damaged.
  • Before installing the windshield glass and cowl panel, make sure there are no gravel in the installing area.
  1. Connect the battery ground terminal. Refer to NOTE>NOTE>BATTERY .
  2. Check that the motor assembly - windshield wiper is at the auto stop position.
    CAUTION: During motor operation, do not touch the movable part.
    1. Connect the harness of front wiper to the motor assembly - windshield wiper.
    2. Switch the combination switch (wiper) to ON/OFF once.
  3. Disconnect the ground cable from battery again. Refer to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  4. Install the motor assembly - windshield wiper.

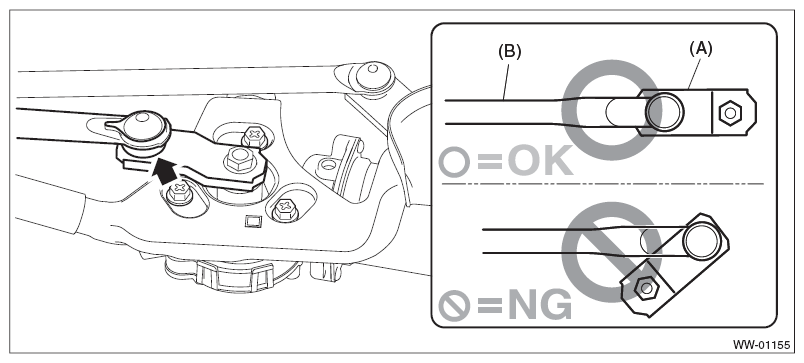

    1. Align the link plate position.
      CAUTION: Install the motor assembly - windshield wiper at the position where the rod (B) and link plate (A) are aligned in a straight line.
      G10270789Courtesy of SUBARU OF AMERICA, INC.
    2. Install the motor assembly - windshield wiper.

      Tightening torque:

      5.5 N.m (0.6 kgf-m, 4.1 ft-lb)

  5. Install the link assembly - windshield wiper.

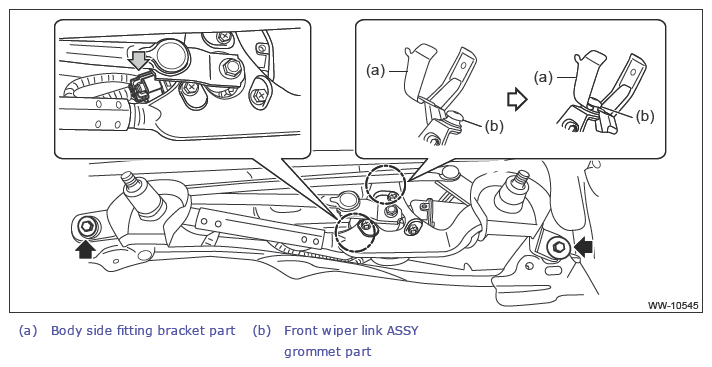

    1. Fit the grommet part of the front wiper link assembly into the body, install the bolts and harness clips, and then install the link assembly - windshield wiper.

      Tightening torque:

      6 N.m (0.6 kgf-m, 4.4 ft-lb)

    2. Install the connector of the motor assembly - windshield wiper.
    G13262679Courtesy of SUBARU OF AMERICA, INC.
  6. Install the cowl panel - side and the cowl panel assembly. Refer to EXTERIOR/INTERIOR TRIM>COWL PANEL>INSTALLATION .
  7. Install the arm assembly - windshield wiper. Refer to WIPER AND WASHER SYSTEMS>FRONT WIPER ARM>INSTALLATION .
  8. Connect the battery ground terminal. Refer to NOTE>NOTE>BATTERY .
  9. Operate the windshield wiper to check that the stop position is aligned with the point mark.

    If it is not aligned with the point mark, perform the removal and installation of the windshield wiper over again. Refer to WIPER AND WASHER SYSTEMS>FRONT WIPER ARM>REMOVAL .

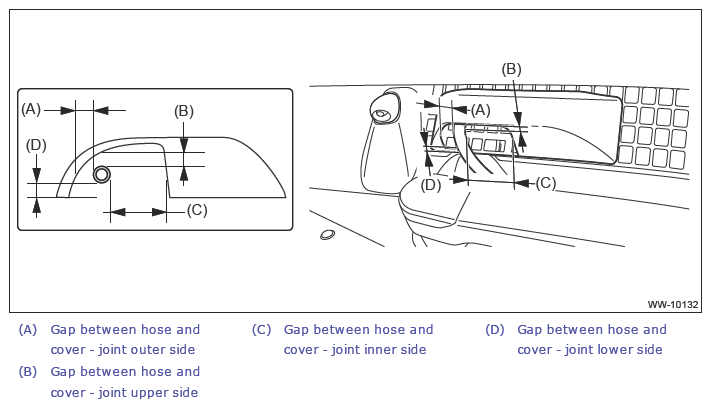

  10. Make sure that there is a gap of 1 mm (0.04 in) or more between the hose and the cover - joint and between the hose and the joint - washer hose during windshield wiper operation. (Models with EyeSight)
G13262680Courtesy of SUBARU OF AMERICA, INC.
