Steering Lock Control Module: Removal

CAUTION:

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM".
Refer to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
Do not allow harness and connectors to interfere or get tangled up with other parts.
If the steering wheel and steering angle sensor (steering roll connector) are removed, perform "VSC (VDC) Centering Mode" of the VDC.
Refer to VEHICLE DYNAMICS CONTROL (VDC)>VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDCCM & H/U)>ADJUSTMENT>VDC SENSOR MIDPOINT SETTING MODE .

Disconnect the ground cable from battery and wait for at least 60 seconds before starting work.
Refer to NOTE>NOTE>BATTERY .

NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
Remove the cover assembly - instrument panel LWR driver,
Refer to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
Remove the universal joint assembly - steering,
Refer to POWER ASSISTED SYSTEM (POWER STEERING)>UNIVERSAL JOINT>REMOVAL
Remove the column assembly - steering.
Refer to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING COLUMN>REMOVAL

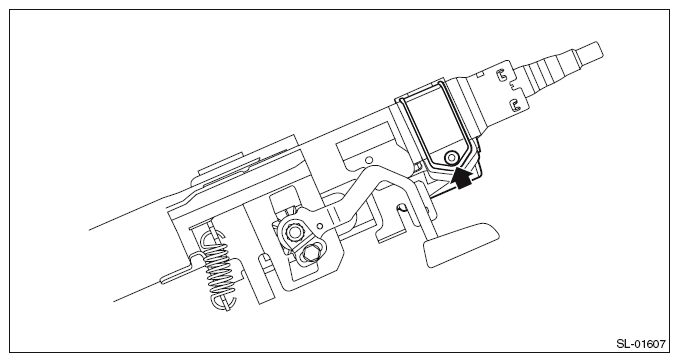

Remove the steering lock control module.

Use the reverse tap or drill to remove the set bolt and remove the steering lock control module.

CAUTION: Do not apply any impact to the set bolt by a chisel or punch. Doing so may damage the control module.
