Keyless Access Control Module: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Refer to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .
  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work.

    Refer to NOTE>NOTE>BATTERY .

    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the cover assembly - instrument panel LWR driver.

    Refer to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .

  3. Remove the knee airbag module.

    Refer to AIRBAG SYSTEM>KNEE AIRBAG MODULE>REMOVAL .

  4. Release the lock and remove the fuse holder.

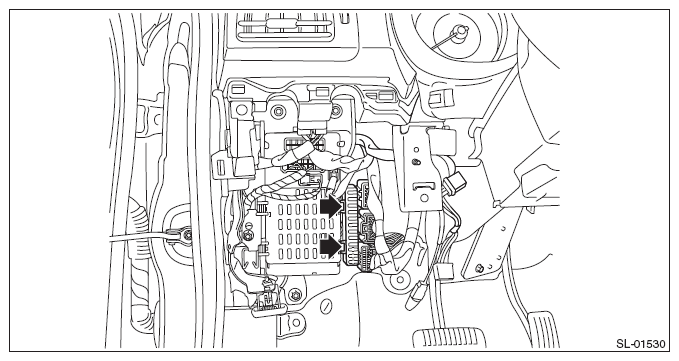

    G08315475Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the relay & fuse box.
    1. Disconnect the connector.
    2. Remove the bolts and nuts, and remove the relay & fuse box.

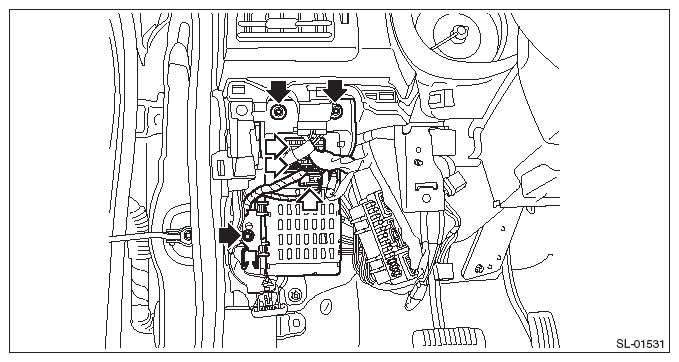

      G08315115Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the keyless access control module.
    CAUTION: Be careful to keep water and other foreign materials away from body integrated unit terminals.
    1. Disconnect the connector.

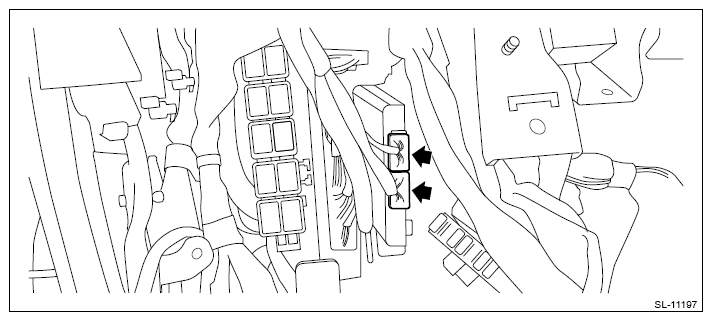

      G13263026Courtesy of SUBARU OF AMERICA, INC.
    2. Release the claws and remove the guide, and then remove the keyless access control module.

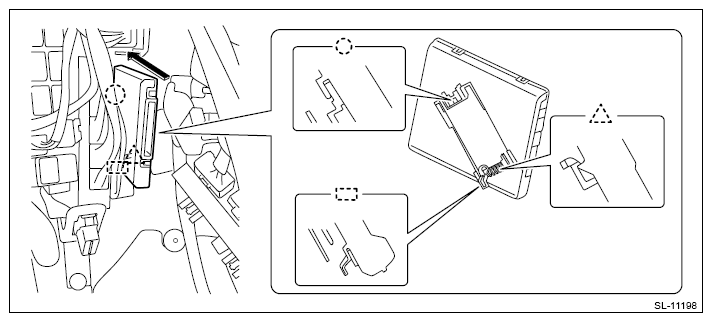

      G13263027Courtesy of SUBARU OF AMERICA, INC.
