Transmission Harness: Removal

  1. Remove the transmission assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Automatic Transmission Assembly>REMOVAL .
  2. Remove the transmission case cover.
    G10275045Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the air breather hose. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR580)>Air Breather Hose>REMOVAL .
  4. Remove the transmission hanger and transmission radio ground cord.
  5. Disconnect the harness connector from the turbine speed sensor, primary speed sensor, secondary speed sensor and secondary pressure sensor.
    G10275046Courtesy of SUBARU OF AMERICA, INC.

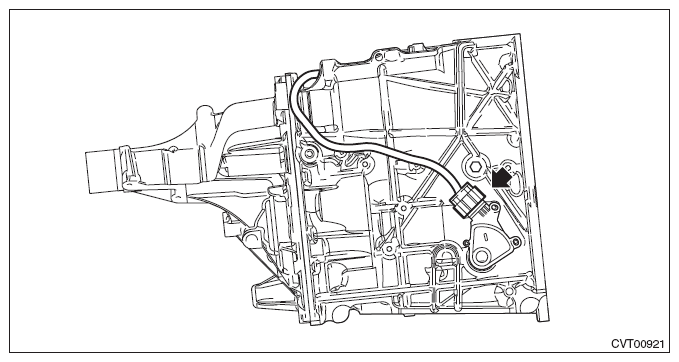

  6. Disconnect the harness connector from the inhibitor switch.
    G10218637Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnect the transmission harness stay and ground terminal, and remove the harness clip.
    G10275048Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the transmission harness connector from the transmission harness stay.
  9. Clean the transmission exterior.
  10. Remove the valve cover and gasket.
    G10275026Courtesy of SUBARU OF AMERICA, INC.
  11. Disconnect the harness connector from the control valve body.
  12. Remove the transmission harness.
    G10275027Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the O-rings.
G08317849Courtesy of SUBARU OF AMERICA, INC.
