Bushing Rear - Front Arm

Before installation, inspect the following items and replace any faulty part with a new one.
- Check the front arm for damage or cracks, and replace if defective.
- Visually check the bushing for abnormal cracks, fatigue or damage.
- Visually check the dust cover on the ball joint for damage.

Install the rear bushing to the bushing rear - front arm.

CAUTION: Confirm the installing direction and install securely.

Install the spacer - arm front (a) and the stopper - rubber front (b).

Courtesy of SUBARU OF AMERICA, INC.

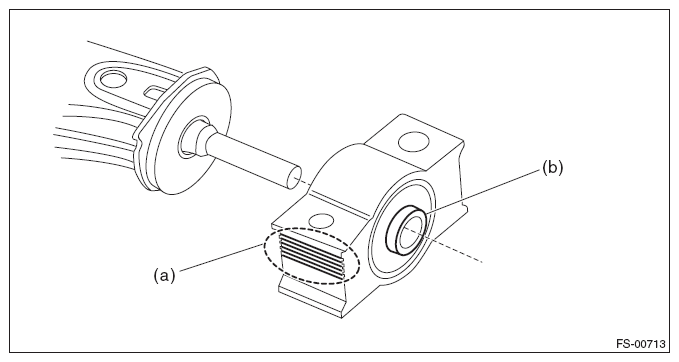

Install the rear bushing so that the rib (a) faces the upper side of the vehicle and the protrusion (b) faces the rear side of the vehicle.

Courtesy of SUBARU OF AMERICA, INC.

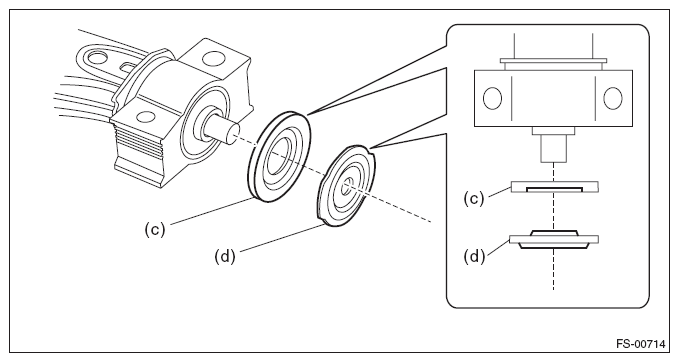

Install the plate - arm front (d) and the stopper - rubber front (c).

Courtesy of SUBARU OF AMERICA, INC.

Using new self-locking nuts, install the rear bushing to the bushing rear - front arm by matching the alignment marks that have been marked when removing.

Tightening torque:

140 N.m (14.3 kgf-m, 103.3 ft-lb)

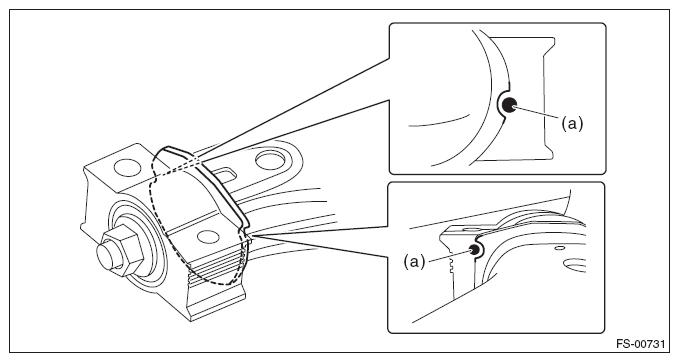

Front arm assembly replacement: align the alignment mark (a) of the bushing rear - front arm with the cutout portion of the front arm assembly.

Courtesy of SUBARU OF AMERICA, INC.

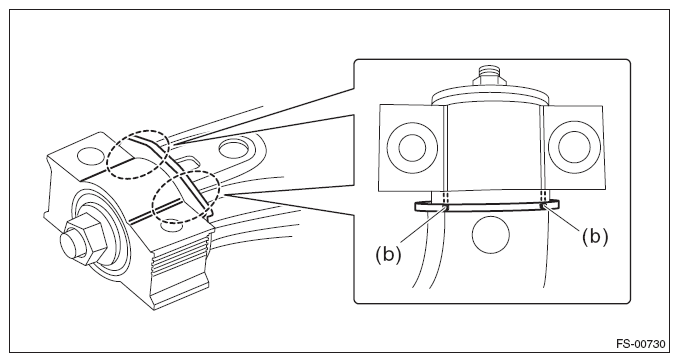

Bushing rear - front arm replacement: align the alignment mark (b) on the front arm assembly with an imaginary line extending from the rib portion of the bushing rear - front arm.
