Steering Gearbox

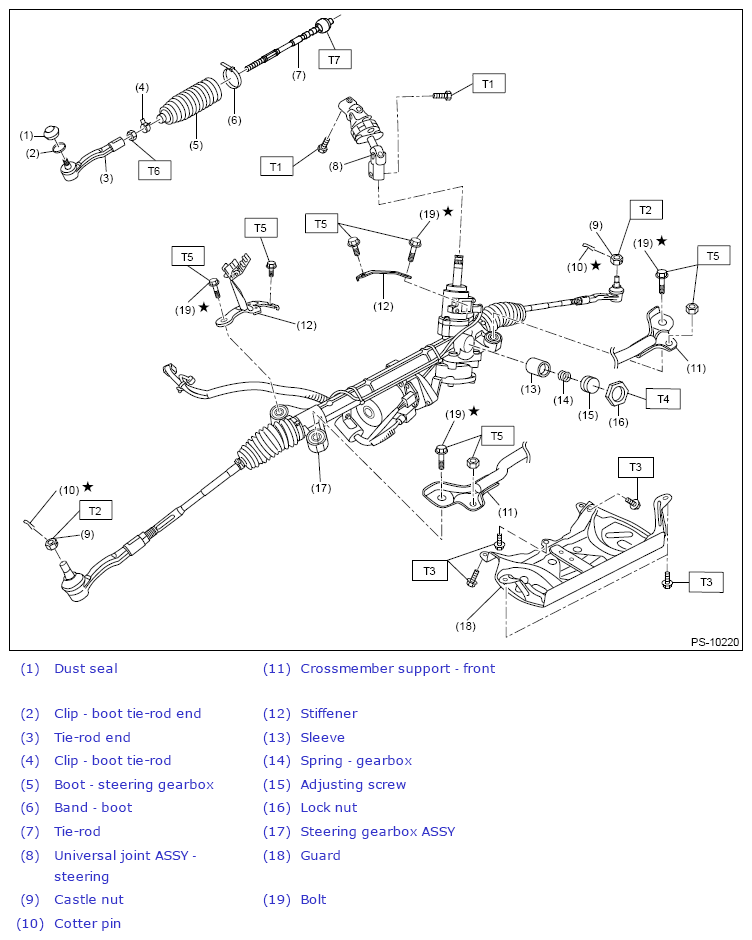

Fig 1: Steering Gearbox Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 24 (2.4, 17.7)

T2: 27 (2.8, 19.9)

T3: 30 (3.1, 22.1)

T4: 45 (4.6, 33.2)

T5: 60 (6.1, 44.3)

T6: 85 (8.7, 62.7)

T7: 90 (9.2, 66.4)
