Side Airbag Module

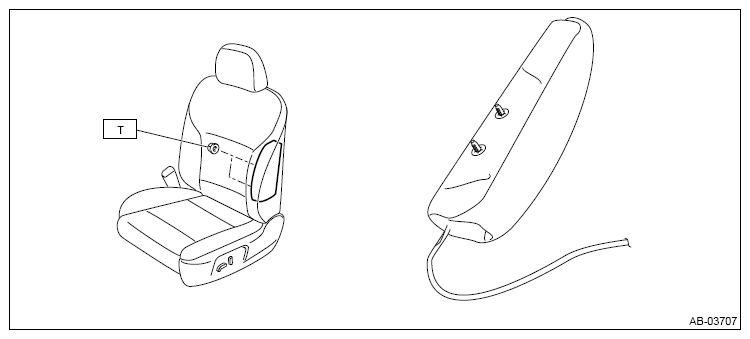

Fig 1: Side Airbag Module (With Torque Specification)
G13250771Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 6 (0.6, 4.4)
