Front Sub Sensor

CAUTION: Do not reuse mounting bolts and nuts.

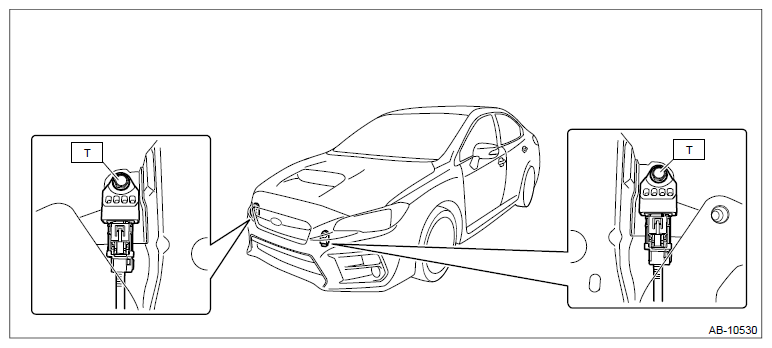

Fig 1: Front Sub Sensor (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 13 (1.3, 9.6)
