Airbag Control Module: Removal

CAUTION:
  • Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>General Description>CAUTION .
  • Do not disassemble the airbag control module.
  • If the airbag control module is deformed or if there is any trace of water on the module, replace the airbag control module with a new one.
  • Do not drop the airbag control module.
  • After removal, keep the airbag control module on a dry, clean surface away from moisture, heat and dust.
  1. Turn the ignition switch to OFF.
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: On CVT models, shift the select lever into "N" before disconnecting the battery ground cable.
  3. Remove the cover - shift lever and the console box assembly. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .
  4. Remove the airbag control module.
    1. Disconnect the connector from airbag control module. Ref. to AIRBAG SYSTEM>Airbag Connector>PROCEDURE>AIRBAG CONTROL MODULE .
    2. Remove the bolt and nuts and remove the airbag control module.

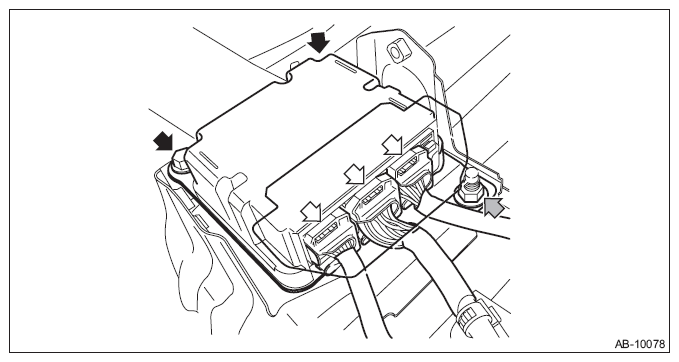

    G10311555Courtesy of SUBARU OF AMERICA, INC.
