Front Exhaust Pipe: Disassembly

WARNING: This page is about a different variant/trim than selected.

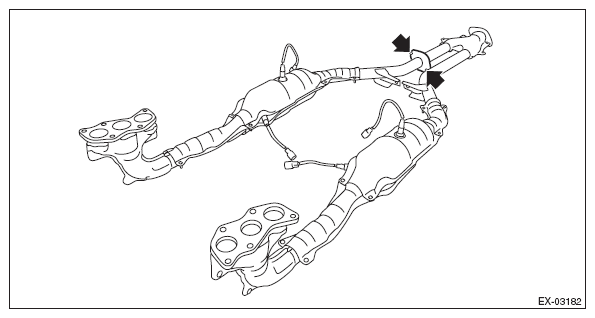

  1. Separate the front exhaust pipe (RH) from the front exhaust pipe (LH).
    G10264142Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the front oxygen (A/F) sensor and rear oxygen sensor from front exhaust pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H6DO)>FRONT OXYGEN (A/F) SENSOR>REMOVAL . Ref. to FUEL INJECTION (FUEL SYSTEMS) (H6DO)>REAR OXYGEN SENSOR>REMOVAL .

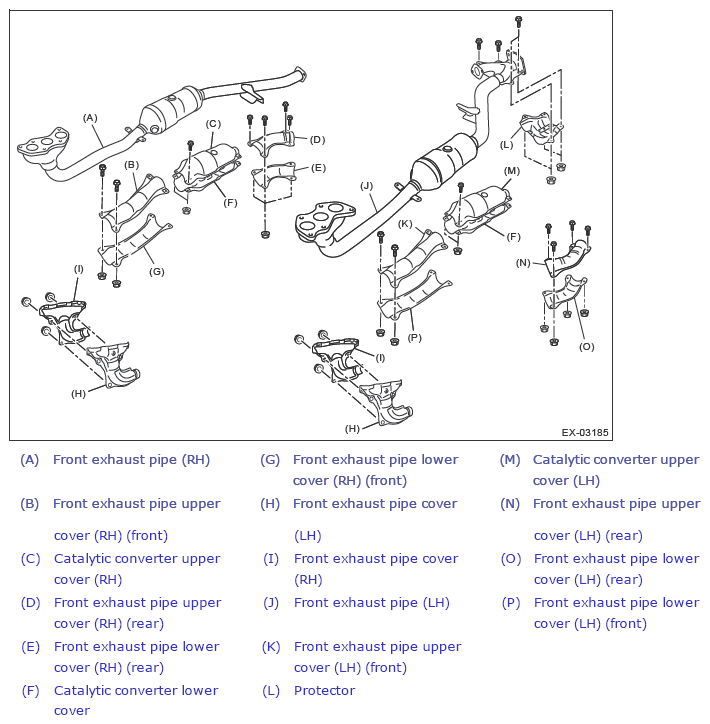

  3. Remove each cover from the front exhaust pipe.
    G13248362Courtesy of SUBARU OF AMERICA, INC.
