Reservoir Tank: Installation
WARNING: This page is about a different variant/trim than selected.

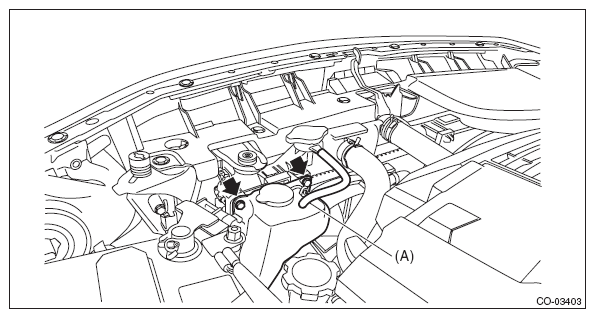

- Install the bolts securing the reservoir tank to the radiator fan shroud.
Tightening torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
- Insert the over flow hose (A) connected to the radiator filler neck into the reservoir tank.
 Courtesy of SUBARU OF AMERICA, INC.
|
