Radiator Fan System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

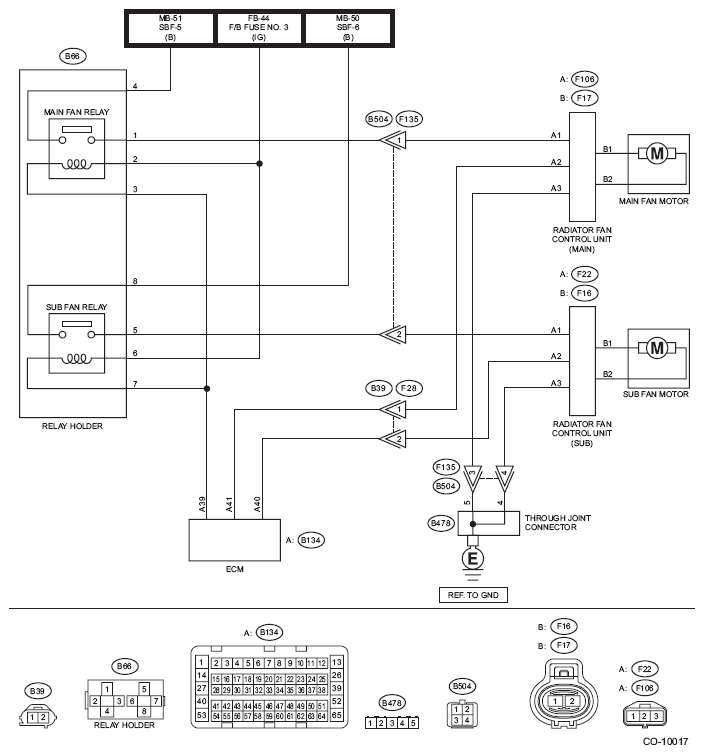

Radiator fan system Ref. to WIRING SYSTEM>RADIATOR FAN SYSTEM>WIRING DIAGRAM>ENGINE TYPE EZ .

G10264156Courtesy of SUBARU OF AMERICA, INC.
