Oil Pump: Installation

WARNING: This page is about a different variant/trim than selected.

Apply engine oil to the O-ring and attach it to the oil pan upper.
NOTE: Use new O-rings.

Courtesy of SUBARU OF AMERICA, INC.
Install the stiffener and the oil pump.
Tightening torque:

T1: 13 N.m (1.3 kgf-m, 9.6 ft-lb)

T2: 24 N.m (2.4 kgf-m, 17.7 ft-lb)

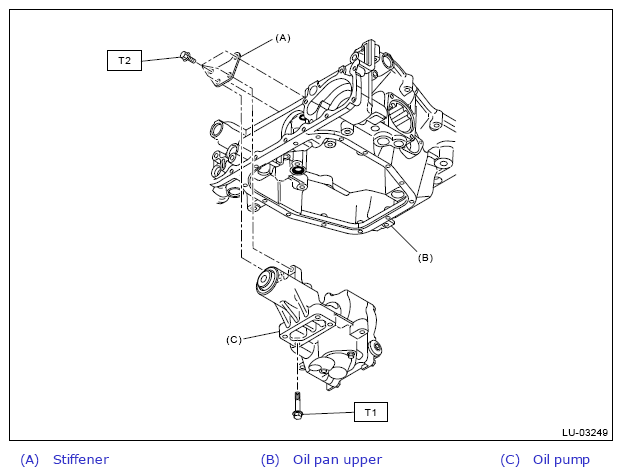

Fig 1: Stiffener And Oil Pump Components (With Torque Specification)
Courtesy of SUBARU OF AMERICA, INC.
Apply liquid gasket to the mating surface of the strainer as shown in the figure, and install the strainer.
NOTE:
- Before applying liquid gasket, degrease the liquid gasket seal surface of the strainer and oil pump.
- Install within 5 min. after applying liquid gasket.
- After installing the strainer, remove any liquid gasket that is squeezed out.
Liquid gasket:

THREE BOND 1217G (Part No. K0877Y0100), THREE BOND 1217H or equivalent

Liquid gasket applying diameter:

2±1 mm (0.079±0.039 in)

Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the oil pan lower. Ref. to LUBRICATION (H6DO)>Oil Pan>INSTALLATION .
Install the timing chain assembly. Ref. to MECHANICAL (H6DO)>TIMING CHAIN ASSEMBLY>INSTALLATION .
Install the chain cover. Ref. to MECHANICAL (H6DO)>CHAIN COVER>INSTALLATION .
Fill engine oil. Ref. to LUBRICATION (H6DO)>Engine Oil>REPLACEMENT .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Fill engine coolant. Ref. to COOLING (H6DO)>ENGINE COOLANT>REPLACEMENT>FILLING OF ENGINE COOLANT .
Install the collector cover.
