Oil Pressure System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

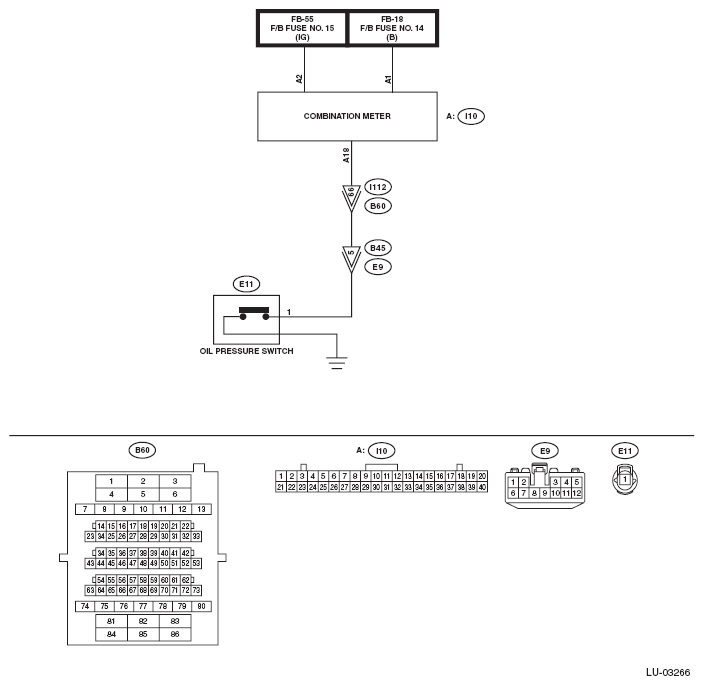

Oil pressure warning system Ref. to WIRING SYSTEM>OIL PRESSURE WARNING LIGHT SYSTEM>WIRING DIAGRAM .

G10264228Courtesy of SUBARU OF AMERICA, INC.
