Oil Cooler: Installation
WARNING: This page is about a different variant/trim than selected.

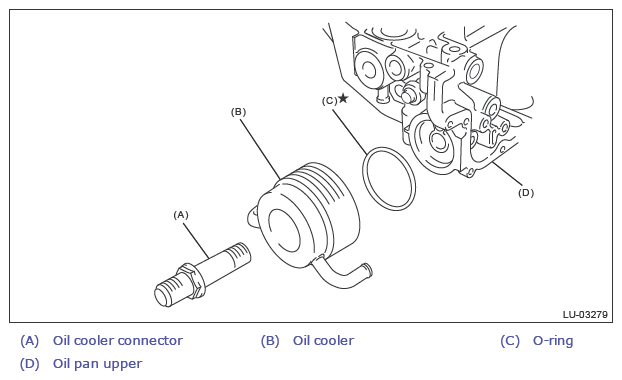

- Install the oil cooler to the oil pan upper, and fasten the oil cooler connector.
Tightening torque:
54 N.m (5.5 kgf-m, 39.8 ft-lb)
NOTE: Use new O-rings. - Install the oil filter. Ref. to LUBRICATIONS (H6DO)>ENGINE OIL FILTER>INSTALLATION .
- Install the engine oil cooler water pipe (A), water hose (B) and water hose (C), and connect the water hose (D) to the oil cooler.
Tightening torque:
6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
- Install the under cover. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>INSTALLATION .
- Lower the vehicle.
- Fill engine oil. Ref. to LUBRICATION (H6DO)>ENGINE OIL>REPLACEMENT .
- Fill engine coolant. Ref. to COOLING (H6DO)>ENGINE COOLANT>REPLACEMENT>FILLING OF ENGINE COOLANT .
