Crankshaft And Piston

WARNING: This page is about a different variant/trim than selected.

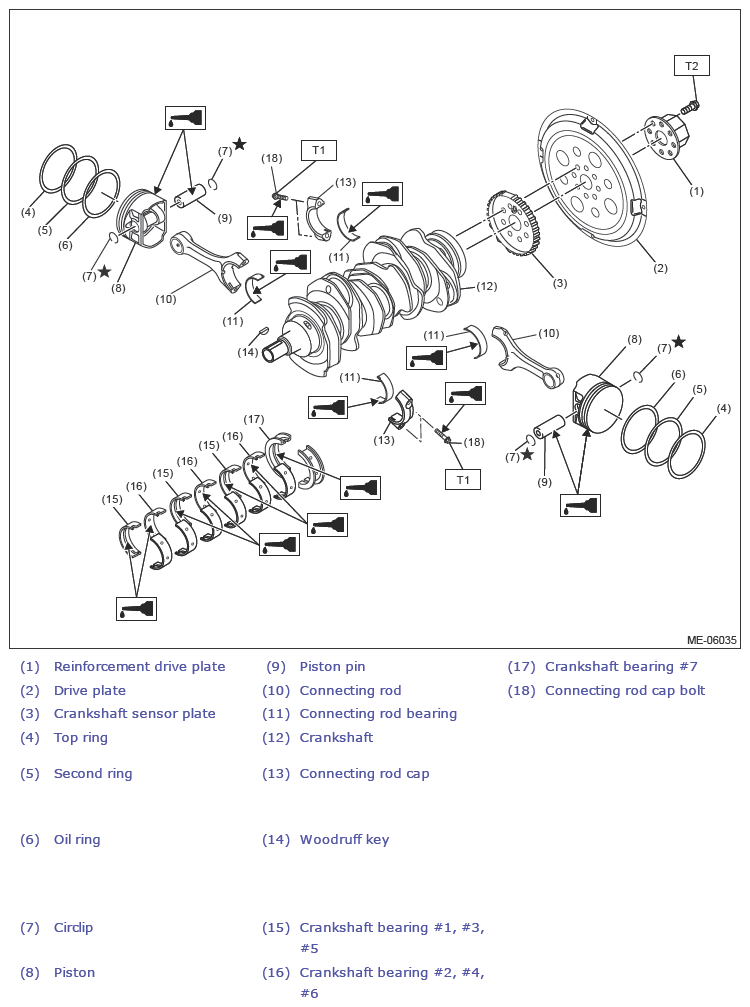

Fig 1: Crankshaft And Piston Components (With Torque Specification)
G13248054Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1:  Ref. to MECHANICAL (H6DO)>Cylinder Block>INSTALLATION .

T2:  Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>DRIVE PLATE>INSTALLATION .
