X MODE Switch: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover assembly - front. Ref. to EXTERIOR/INTERIOR TRIM>CONSOLE BOX>REMOVAL .

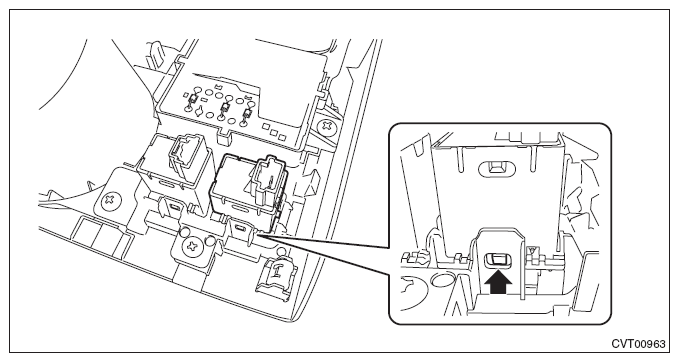

  3. Remove the X mode switch from the cover assembly - front.
    G10276110Courtesy of SUBARU OF AMERICA, INC.
