Transmission Harness: Installation

WARNING: This page is about a different variant/trim than selected.

Install the harness clip to the transmission assembly.
Insert the transmission harness bushing into the round hole on the transmission case and install the bolt.
NOTE:
- Use new O-rings.
- Do not impact or bend the transmission harness because it has the oil temperature sensor inside.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Control Valve Body>INSTALLATION .
Install the transmission harness connector and inhibitor harness connector to the harness stay.
Install the transmission harness stay.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

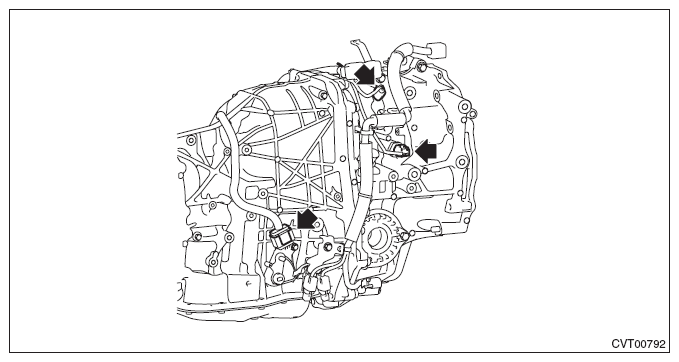

Connect the harness connectors to the inhibitor switch, primary speed sensor and secondary pressure sensor.

Courtesy of SUBARU OF AMERICA, INC.

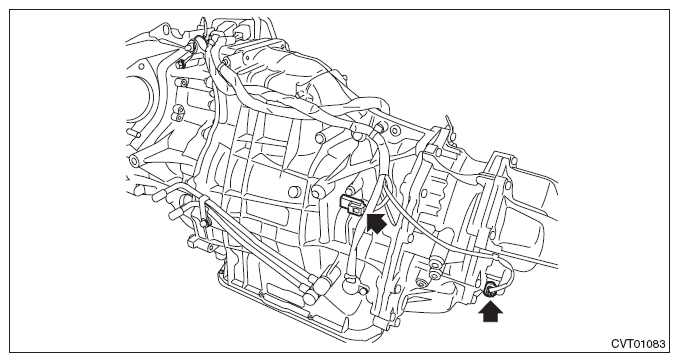

Connect the harness connectors to the front wheel speed sensor and secondary speed sensor.

Courtesy of SUBARU OF AMERICA, INC.

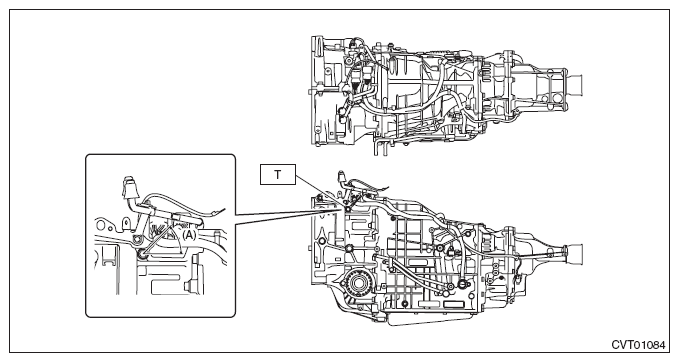

Install the transmission ground terminal.
NOTE: Install the transmission ground terminal at an approximately 45° angle (A).

Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the transmission cover.
Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)
Install the transmission assembly. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Automatic Transmission Assembly>INSTALLATION .
