Transfer Clutch: Disassembly

WARNING: This page is about a different variant/trim than selected.

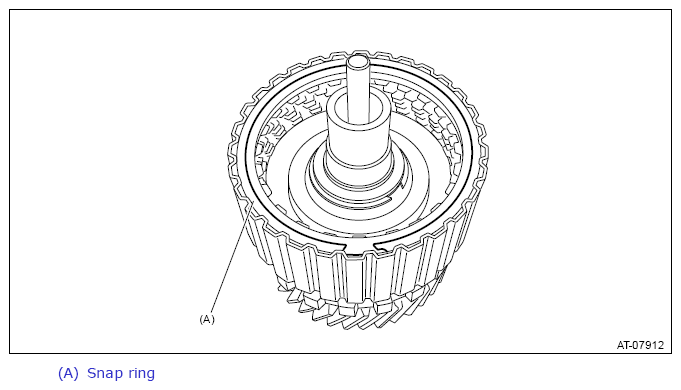

Remove the snap ring, and then remove the pressure plate, drive plate and driven plate.

Courtesy of SUBARU OF AMERICA, INC.

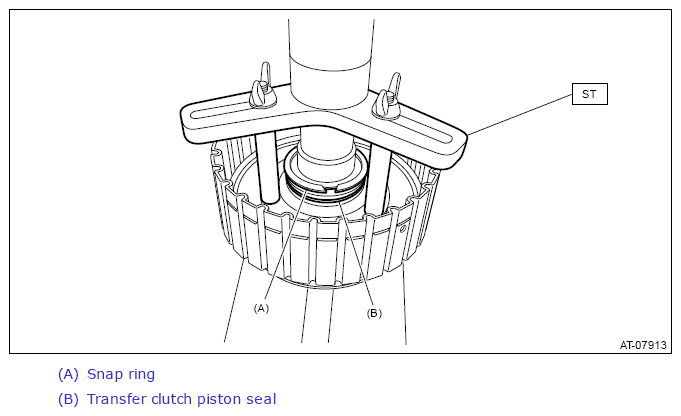

Using the ST, remove the snap ring.
ST 18762AA001 COMPRESSOR SPECIAL TOOL

Courtesy of SUBARU OF AMERICA, INC.
Remove the transfer clutch piston seal.
Remove the return spring.

Courtesy of SUBARU OF AMERICA, INC.
Remove the transfer clutch piston by blowing compressed air through transfer clutch assembly hole.
NOTE: Block the hole opposite to the one to be blown with compressed air by your finger.

Courtesy of SUBARU OF AMERICA, INC.
Using ST, remove transfer drive gear, parking gear and ball bearing.
ST 18767AA000 BEARING REMOVER

NOTE: Let the ST sit on the parking gear.

Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring from transfer reduction drive gear.

Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the parking gear from transfer reduction drive gear.
ST1 499277100 BUSHING 1-2 INSTALLER

ST2 18767AA000 BEARING REMOVER

Courtesy of SUBARU OF AMERICA, INC.
