Section 1 (Engine Starting System & Charging System (3.6L)): Starter: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the collector cover.
    1. Carefully pull up the rear of collector cover at two positions (A).
    2. Carefully pull up the front of collector cover at two positions (B) while moving it forward.
    G11585612Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Loosen the clamp (A) securing the air intake boot.
  4. Loosen the bolt (B) securing the air intake boot to the collector cover bracket.
    G11585613Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the air intake boot from the throttle body and air cleaner case (rear), and move the air intake boot aside so that it does not interfere with the work.
    CAUTION: Be careful not to allow the air intake boot to contact the air conditioner pipe.
    G11585614Courtesy of SUBARU OF AMERICA, INC.

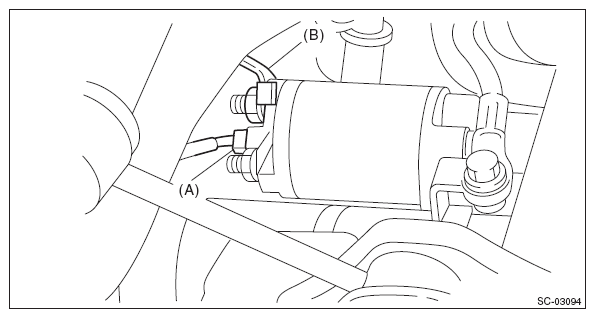

  6. Disconnect the connector (A) and terminal (B) from starter.
    G10264281Courtesy of SUBARU OF AMERICA, INC.

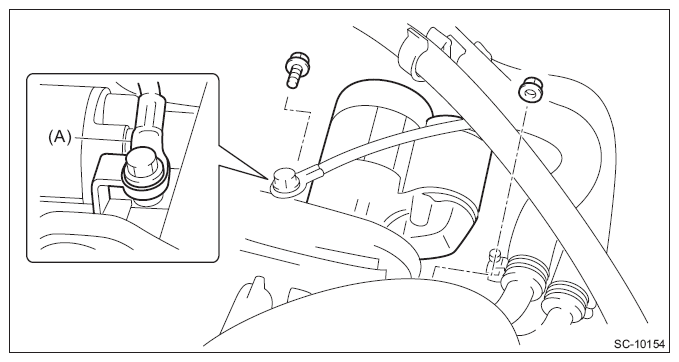

  7. Disconnect the terminal (A) from the cable stay and remove the cable stay and starter from the transmission.
    CAUTION: In order to prevent damaging the terminal (A), fix the terminal (A) when loosing the bolt, and avoid the part from rotating together while loosening the bolt.
    G11586364Courtesy of SUBARU OF AMERICA, INC.
