Starter Relay: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the instrument panel lower cover. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .

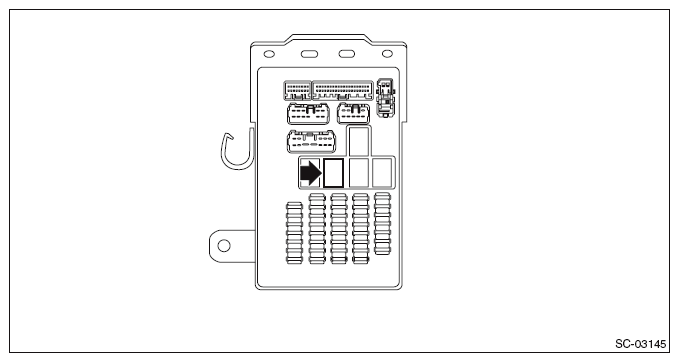

  3. Remove the starter relay from relay block.
    G10263144Courtesy of SUBARU OF AMERICA, INC.
