Section 1 (Engine Starting System & Charging System (3.6L)): Generator: Installation

WARNING: This page is about a different variant/trim than selected.

Install the generator bracket to the engine.
Tightening torque:

33 N.m (3.4 kgf-m, 24.3 ft-lb)
Temporarily fit the generator and the collector cover bracket.
Tighten the bolts in the numerical order as shown in the figure.
Tightening torque:

T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T2: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

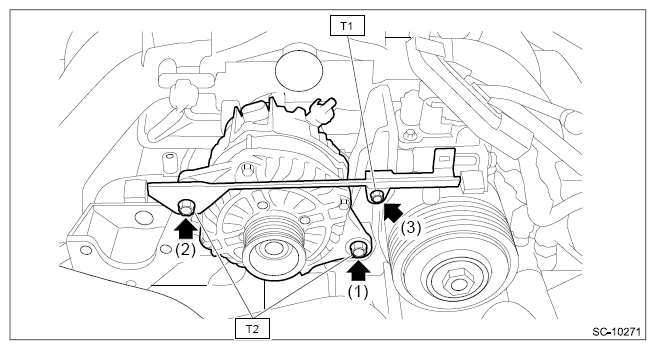

Fig 1: Generator And Collector Cover Bracket Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.

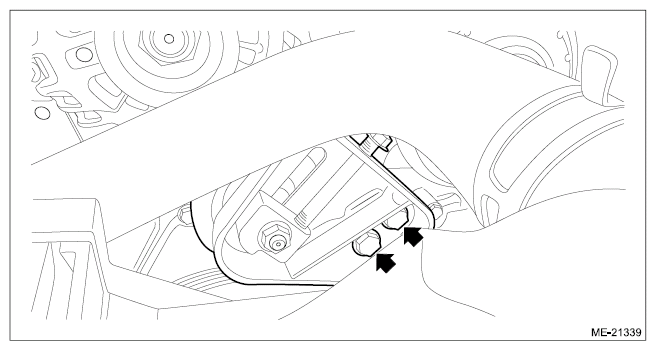

Install the tensioner assembly.
Tightening torque:

20 N.m (2.0 kgf-m, 14.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the harness cover (C) to the collector cover bracket.

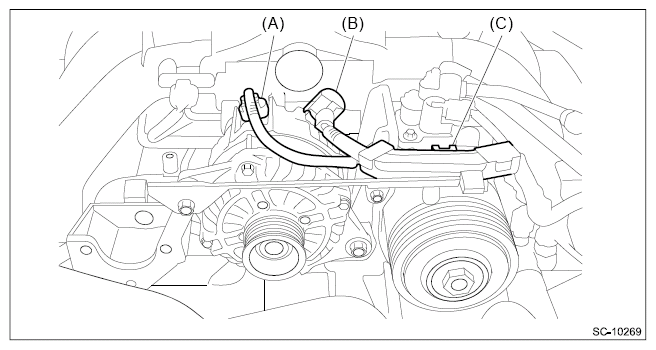

Connect the connector (A) and terminal (B) to the generator.
Tightening torque:

15.5 N.m (1.6 kgf-m, 11.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the V-belts. Ref. to MECHANICAL (H6DO)>V-BELT>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Install the collector cover.
