Section 1 (Engine Starting System & Charging System (3.6L)): Generator: Assembly

WARNING: This page is about a different variant/trim than selected.
NOTE: After assembling, manually turn the pulley to check that the rotor rotates smoothly.
  1. When the rectifier is removed
    1. Apply grease to the mating surface of the rear cover and the rectifier as shown in the figure.
      CAUTION: Do not apply grease to the attachment threads of the rectifier.

      Grease:

      Silicone oil compound for heat radiation YG6240 or equivalent

      Amount of grease application (one place):

      Approx. 0.14 g

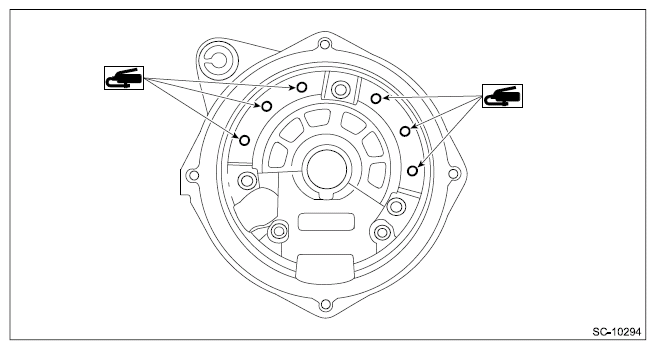

      G12405894Courtesy of SUBARU OF AMERICA, INC.
    2. Install the rectifier.

      Tightening torque:

      3.9 N.m (0.4 kgf-m, 2.9 ft-lb)

      G12405893Courtesy of SUBARU OF AMERICA, INC.
    3. Install the terminal B.

      Tightening torque:

      8.9 N.m (0.9 kgf-m, 6.6 ft-lb)

      G12405892Courtesy of SUBARU OF AMERICA, INC.
    4. Install the cap to the terminal B.

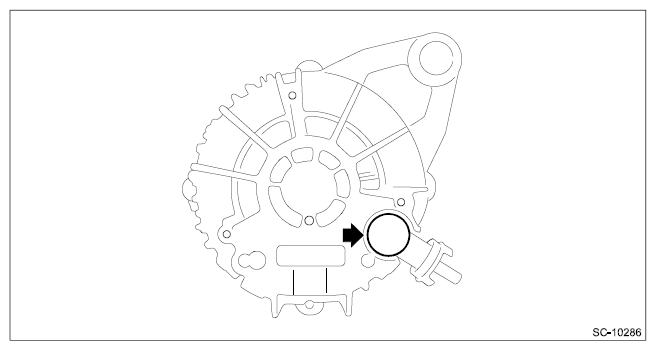

      G12405897Courtesy of SUBARU OF AMERICA, INC.
  2. When the brush is removed
    1. Set the brush and solder the connection.
      G12405890Courtesy of SUBARU OF AMERICA, INC.
    2. Install the cover B.
      G12405889Courtesy of SUBARU OF AMERICA, INC.
    3. Install the cover A.
      G12405888Courtesy of SUBARU OF AMERICA, INC.
  3. Install the IC regulator.
    NOTE: Make sure that the gasket is installed firmly to the IC regulator.

    Tightening torque:

    T1: 2 N.m (0.2 kgf-m, 1.5 ft-lb)

    T2: 3.9 N.m (0.4 kgf-m, 2.9 ft-lb)

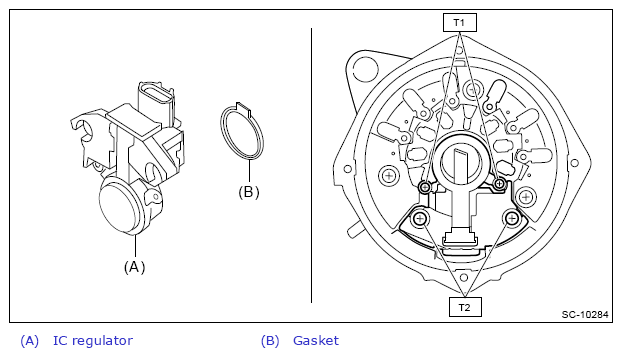

    G13248580Courtesy of SUBARU OF AMERICA, INC.
  4. Install the stator coil.

    Tightening torque:

    2 N.m (0.2 kgf-m, 1.5 ft-lb)

    G12405886Courtesy of SUBARU OF AMERICA, INC.
  5. When the ball bearing is removed
    1. Set the ball bearings in the front cover, then set an appropriate tool (such as a socket wrench of proper size) for the bearing outer race.
      CAUTION:
      • Do not apply grease to the ball bearings.
      • If any grease adheres to the ball bearing attachment area, remove it completely.
      NOTE: Use a new ball bearing.
    2. Using a press, install the ball bearings.
    3. Install the bearing retainer.
      NOTE: If necessary, use a vise to secure the front cover.

      Tightening torque:

      3.9 N.m (0.4 kgf-m, 2.9 ft-lb)

      G10264326Courtesy of SUBARU OF AMERICA, INC.
  6. Using a press, install the bearings to the rotor shaft.
    NOTE: Use a new bearing.
  7. Install the rotor to the front cover.
    NOTE: Check that the spacer is installed to the rotor.

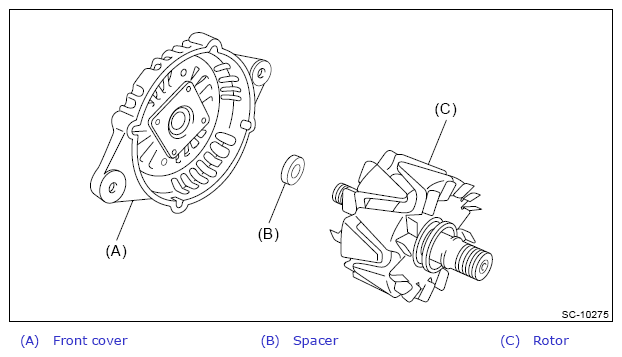

    G13248583Courtesy of SUBARU OF AMERICA, INC.
  8. Hold the rotor on a vise and install the pulley.
    CAUTION:
    • Place aluminum plates or wooden pieces into the contacting surfaces between the vise and the rotor to prevent rotor damage.
    • Do not tighten the vise more than necessary.

    Tightening torque:

    117.5 N.m (12.0 kgf-m, 86.7 ft-lb)

    G10264324Courtesy of SUBARU OF AMERICA, INC.
  9. Press the brush into the brush holder, then fix the brush by inserting a wire [2 mm (0.08 in) dia., 40 - 50 mm (1.6 - 2.0 in) long] through the service hole of the rear cover.
    NOTE: The gasket installed to the IC regulator can be passed through.

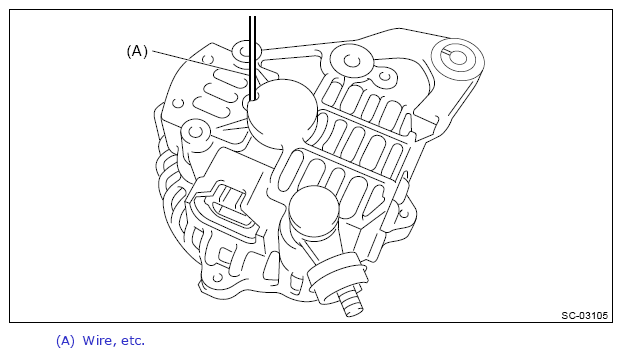

    G13248585Courtesy of SUBARU OF AMERICA, INC.
  10. Use a drier to heat the bearing attachment area of the rear cover to 50 - 60°C (122 - 140°F), and install the rotor to the rear cover.
    CAUTION:
    • Do not apply grease to the bearings.
    • If any grease adheres to the bearing attachment area, remove it completely.
    G10264322Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the wire from the service hole of the rear cover.
  12. Install the through bolt.

    Tightening torque:

    4.4 N.m (0.4 kgf-m, 3.2 ft-lb)

    G10264321Courtesy of SUBARU OF AMERICA, INC.
