Component With Torque Specifications: Generator

WARNING: This page is about a different variant/trim than selected.

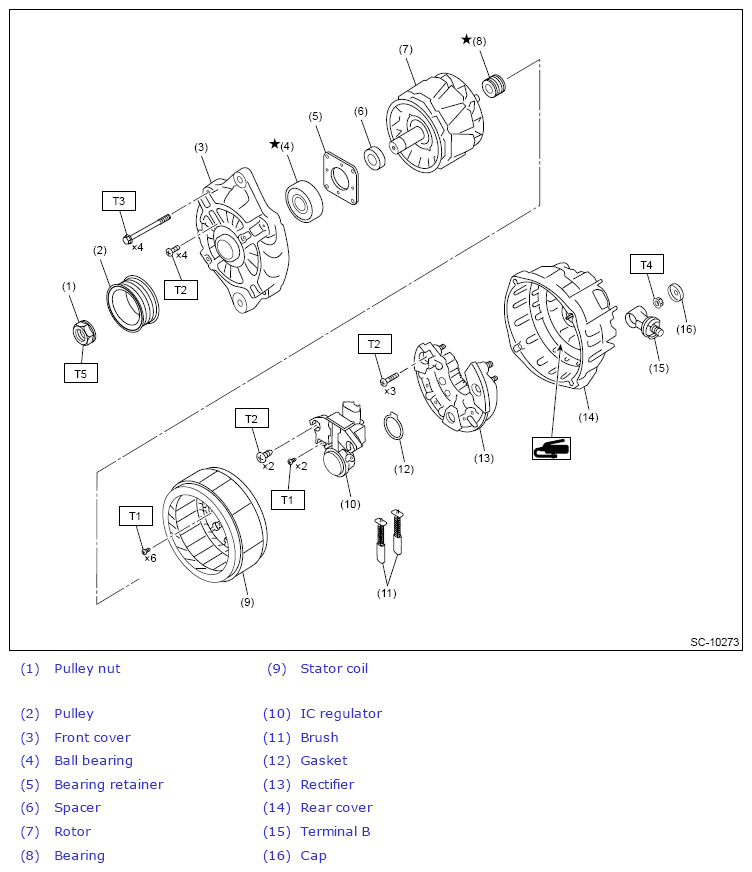

Fig 1: Generator Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 2 (0.2, 1.5)

T2: 3.9 (0.4, 2.9)

T3: 4.4 (0.4, 3.2)

T4: 8.9 (0.9, 6.6)

T5: 117.5 (12.0, 86.7)
