Battery Sensor: Installation
WARNING: This page is about a different variant/trim than selected.

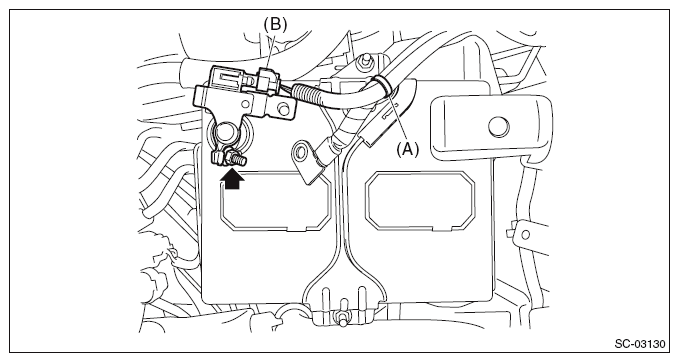

- Install the battery sensor, and connect the connector (B) to the battery sensor.
Tightening torque:
6 N.m (0.6 kgf-m, 4.4 ft-lb)
- Attach the clip (A) to the battery holder.
- Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
