Engine Starting System & Charging System (2.5L): Generator: Installation

Temporarily install the generator bracket to the engine and tighten the bolts in the numerical order.
Tightening torque:

36 N.m (3.7 kgf-m, 26.6 ft-lb)

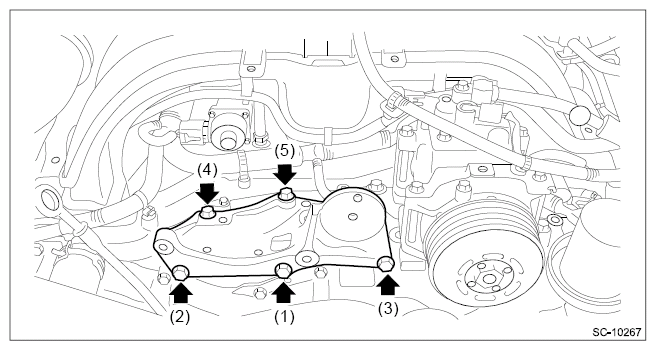

Fig 1: Generator Bracket To Engine Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Install the V-belt tensioner assembly. Ref. to MECHANICAL (H4DO)>V-BELT>INSTALLATION>V-BELT TENSIONER ASSEMBLY .
Temporarily install the generator bracket to the generator and tighten the bolts in the numerical order.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

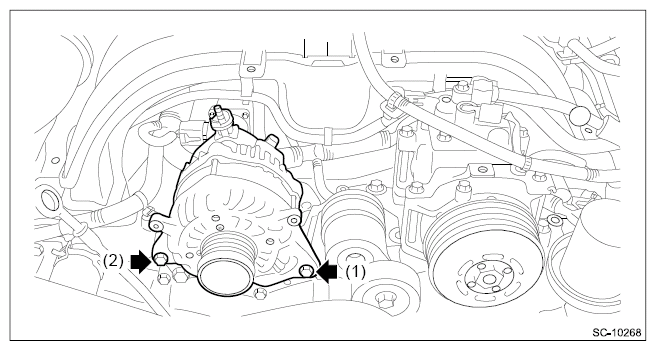

Fig 2: Generator Bracket To Generator Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.

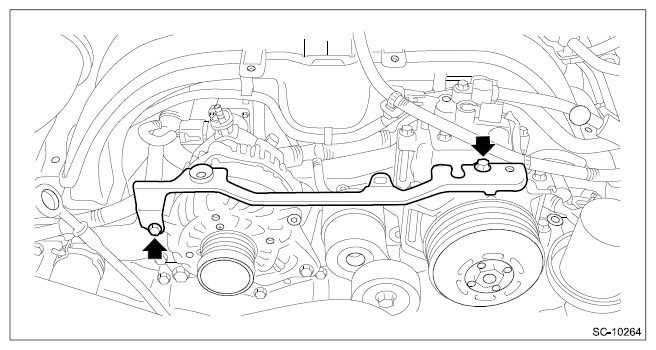

Install the V-belt cover bracket.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

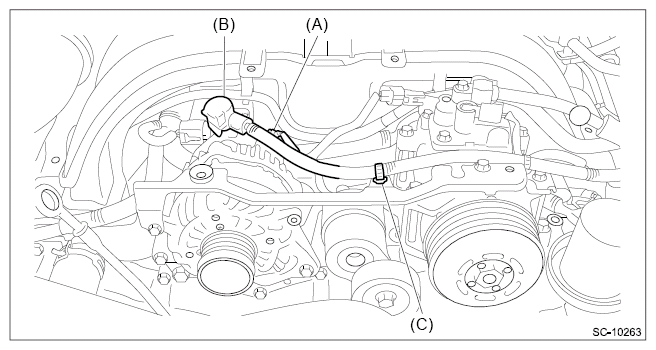

Connect the connector (A) and terminal (B) to the generator, and attach the clip (C).
Tightening torque:

15.5 N.m (1.6 kgf-m, 11.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the V-belts. Ref. to MECHANICAL (H4DO)>V-BELT>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
