Center Exhaust Pipe: Installation

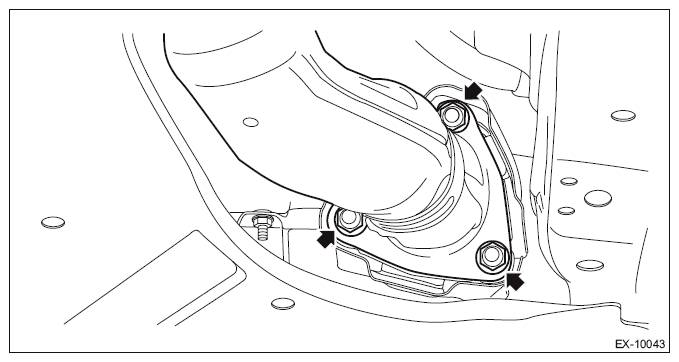

1. Temporarily tighten the nuts which secure the center exhaust pipe to the front exhaust pipe.
   NOTE: Use a new gasket.

   Courtesy of SUBARU OF AMERICA, INC.

2. Install the bolts, springs, and nuts which secure the rear exhaust pipe to the center exhaust pipe.
   NOTE: Use a new gasket.

   Tightening torque:

   18 N.m (1.8 kgf-m, 13.3 ft-lb)

   Courtesy of SUBARU OF AMERICA, INC.

3. Tighten the bolts which secure the center exhaust pipe to the hanger bracket.

   Tightening torque:

   35 N.m (3.6 kgf-m, 25.8 ft-lb)

   Courtesy of SUBARU OF AMERICA, INC.

4. Tighten the nuts which secure the center exhaust pipe to the front exhaust pipe.

Tightening torque:

42.5 N.m (4.3 kgf-m, 31.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
