Home >> Subaru >> 2019 >> Outback 2.5i >> Repair and Diagnosis >> Brakes >> Traction Control >> Vehicle Dynamics Control (VDC) System >> VDC OFF Switch >> Removal

VDC OFF Switch: Removal

  1. Disconnect the ground terminal from the battery sensor. and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover assembly - instrument panel LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .

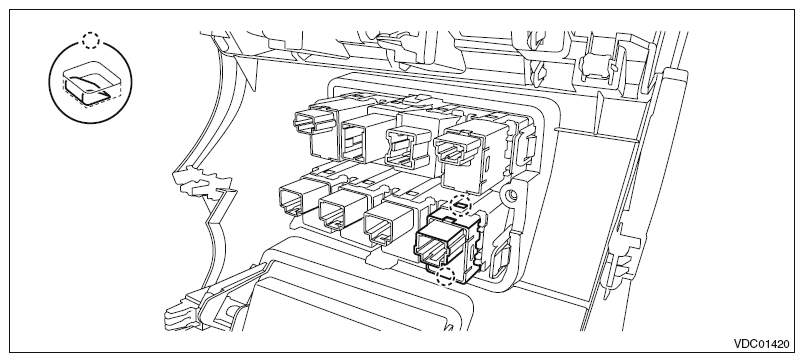

  3. Release the claws and remove the VDC OFF switch.
G10272390Courtesy of SUBARU OF AMERICA, INC.
